Projecta Dual Battery Vsr Voltage Relay Isolator System & Trailer Caravan Kit

PROJECTA 150 AMP DUAL BATTERY ISOLATOR WIRING KIT MODEL DBC150TK, BRAND NEW KIT IN SEALED BOX WITH FULL NATIONWIDE  Manufacturer Warranty

12V 150A Electronic Dual Battery System for use with Trailer Mounted Auxiliary Battery A fully automatic dual battery controller suitable for vehicles with an auxiliary battery in a trailer or a removable auxiliary battery.

FEATURES
Easy to Install - The electronic isolator does not require any changes to the vehicle’s
existing wiring. It can be fitted to all 12V vehicle types.
• Priority Charging for Starting Battery - Ensures that the starting battery is fully charged
before connecting the auxiliary battery in parallel.

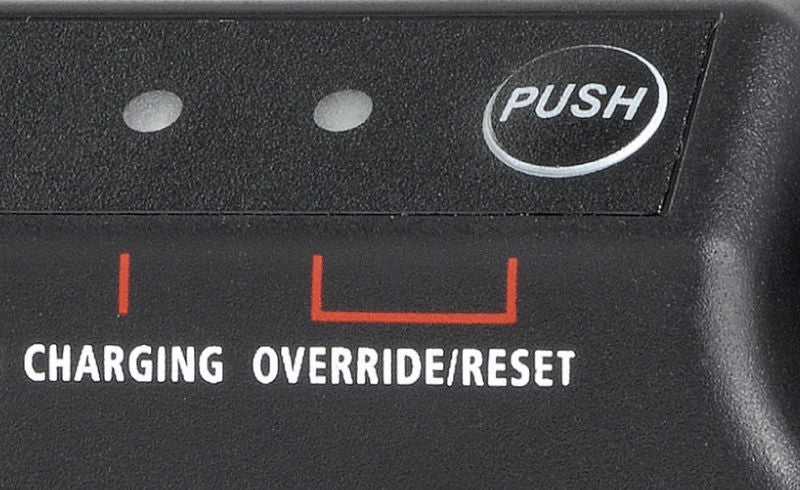

• Manual Override - If the starting battery is flattened and the auxiliary battery is charged
the electronic isolator allows the batteries to be manually paralleled to jumpstart the vehicle.
• Over-Current Protection – Protects the Isolator and charging system from over current damage
which could occur due to a short circuit in the wiring.
• Surge Protection - Provides surge protection for vehicles with electronic ignition/
management systems.

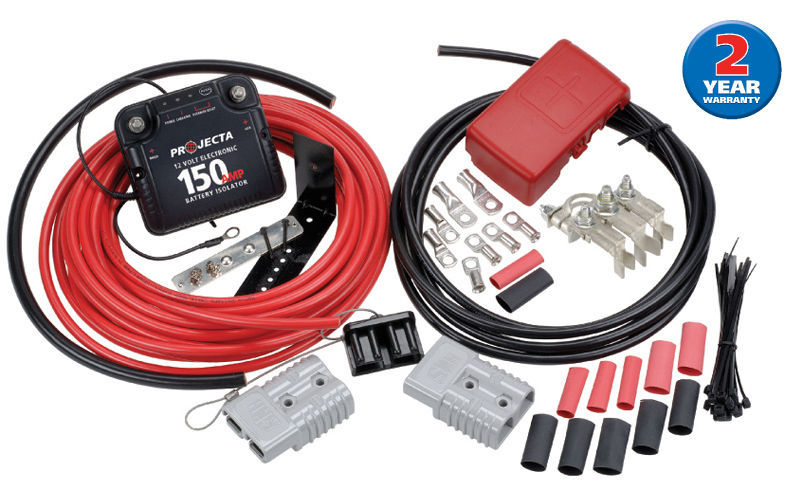

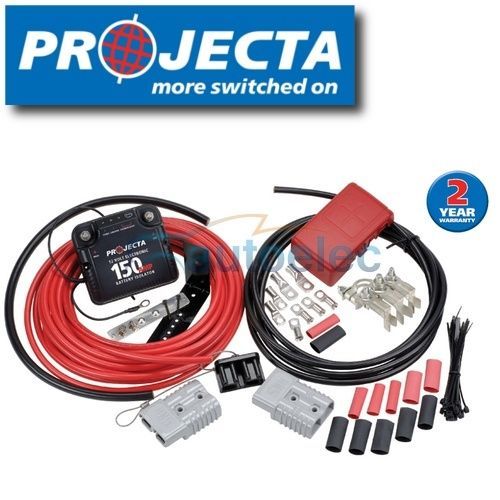

INCLUDED IN THE KIT
DBC150, FULLY AUTOMATIC BATTERY ISOLATOR  + MOUNTING KIT
2 x M6 CABLE TERMINALS
1 x  CABLE TERMINAL
2 x 175AMP CONNECTORS + 1 DUST COVER FOR  CONNECTING VEHICLE TO TRAILER
6 x CABLE LUG 8mm
2 x CABLE LUG 8mm
HEAT SHRINK X 12 PIECES
20 x CABLE TIES
9 METRES RED BATTERY CABLE 4 B&S POSITIVE ISOLATOR CONNECTION
4 METRES BLACK BATTERY CABLE 4 B&S  NEGATIVE CABLE CONNECTION
600mm BLACK BATTERY CABLE 3B&S  AUX BATTERY NEGATIVE CABLE CONNECTION

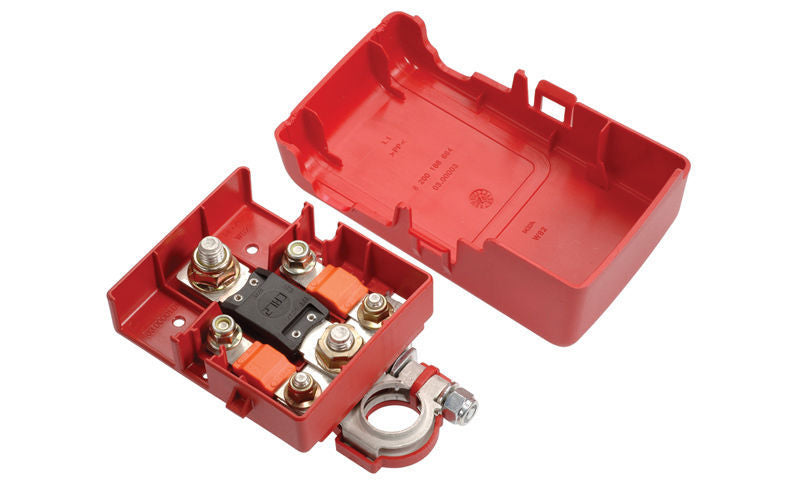

1x POSITIVE FUSED BATTERY TERMINAL + COVER & FUSES x 31x NEGATIVE  BATTERY TERMINAL FOR AUXILARY

SPECIFICATIONS
PART NO.-  DBC150TK
VOLTAGE - 12V
CHARGING CURRENT- 125A/150A peak
CHARGE TYPE- Parallel
CONTROL- Electronic

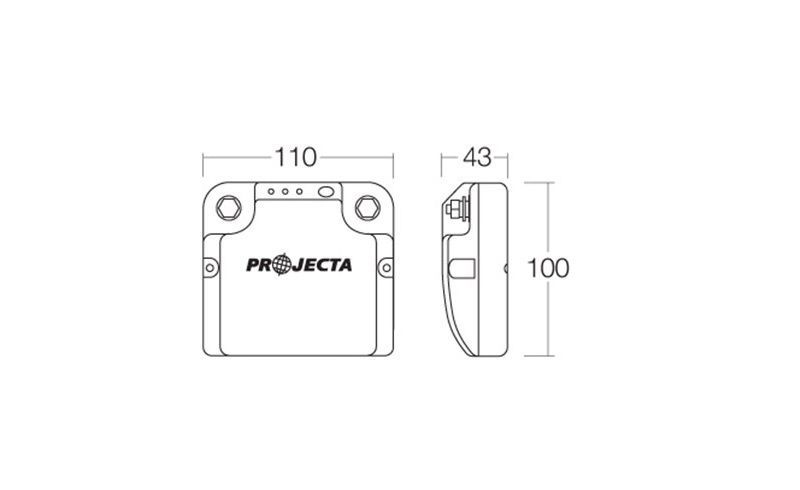

MOUNTING- Surface/firewall/battery side
CURRENT DRAW- Charging 500mA (Standby 30mA)
VOLTAGE DROP- None
SURGE PROTECTION- Built in
IF YOU PURCHASE THIS PACKAGE YOU WILL ALSO REQUIRE• Charged auxiliary battery - Deep cycle recommended for most applications• Auxiliary battery cradle & battery clamp
