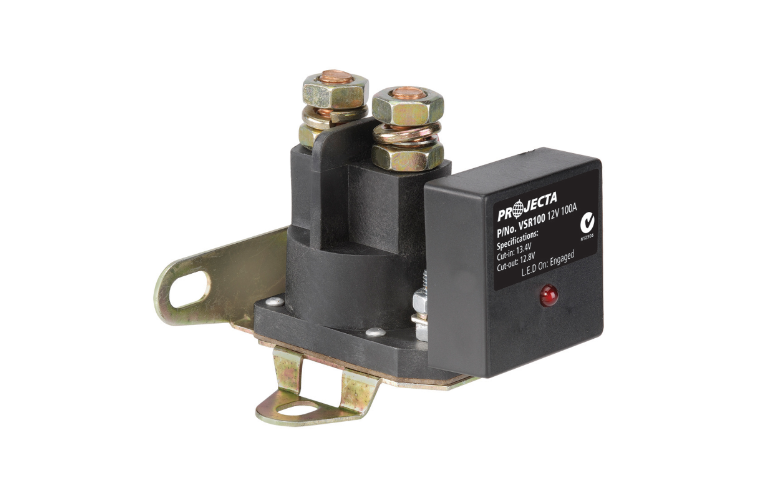

Projecta Dual Battery Voltage Sensitive Relay Isolator Vsr100 100 Amp 12 Volt

PROJECTA 100 AMP DUAL BATTERY ISOLATOR  MODEL VSR100 WITH SWITCHED OVERIDE, BRAND NEW  IN SEALED PACK WITH FULL NATIONWIDE  Manufacturer Warranty

WHEN CONSIDERING THIS CHARGER HAVE A LOOK AT ITEM NUMBER  , THIS IS NOT A PROJECTA BRAND BUT HAS AN OVER RIDE FEATURE AND ARE DUAL SENSING , IT IS WORTH A LOOK BEFORE BUYING THIS ITEM TO TAKE YOU TO IT

FEATURES
This voltage sensitive relay is an affordable, reliable and easy to install dual battery management unit ,fully sealed (IP66).

INCLUDES
100A voltage sensitive relay (P/No. VSR100)

SPECIFICATIONS
Voltage 12V  Charging current 100A Continuous , 200A Peak
Cut-in voltage 13.4V
Cut-out voltage 12.8V
Cut-out delay 8 seconds
Min operating voltage 10V
Charge type Parallel
Control MCU
Mounting Surface/firewall
Current draw Charging 550mA (standby 10mA)
Surge protection Built-in
Ingress protection IP66
Override Requires minimum 10V
Recommended fuse 150A
Approvals EMC
L.E.D charge indication
Red light Power on
