Projecta 200A 12V Voltage Sensitive

PROJECTA 200 AMP DUAL BATTERY ISOLATOR  MODEL VSR200 WITH SWITCHED OVE RIDE, BRAND NEW  IN SEALED PACK WITH FULL NATIONWIDE  Manufacturer Warranty

FEATURES
Suitable for a wide variety of 12V DC applications, the Projecta VSR Units sense the input voltage and automatically connect / disconnect the appliance or circuit at pre-set voltages. Fully sealed to IP66 and surge protected, the VSR units feature a manual override function allowing the user to engage the solenoid from as low as 10V. VSR units are ideal for dual battery setups as they enable the batteries to be paralleled for high power usage, eg jumpstarting or winching.

INCLUDES

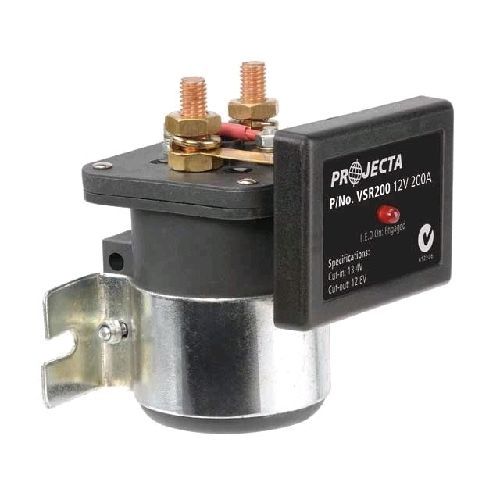

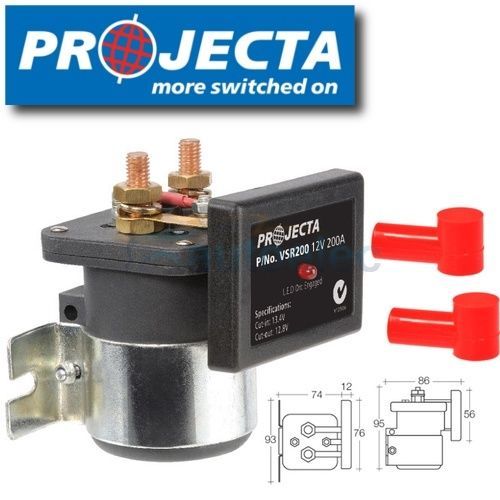

200A voltage sensitive relay (P/No. VSR200)

SPECIFICATIONS
Voltage 12V  Charging current 200A Continuous , 400A Peak
Cut-in voltage 13.4V
Cut-out voltage 12.8V
Cut-out delay 8 seconds
Min operating voltage 10V
Charge type Parallel
Control MCU
Mounting Surface/firewall
Current draw Charging 680mA (standby 10mA)
Surge protection Built-in
Ingress protection IP66
Override Requires minimum 10V
Recommended fuse 250A
Approvals EMC
L.E.D charge indication
Red light Power on
