Narva 61092Bl Voltage Sensitive Relay 12V Vsr Isolator 140A Dual Battery System

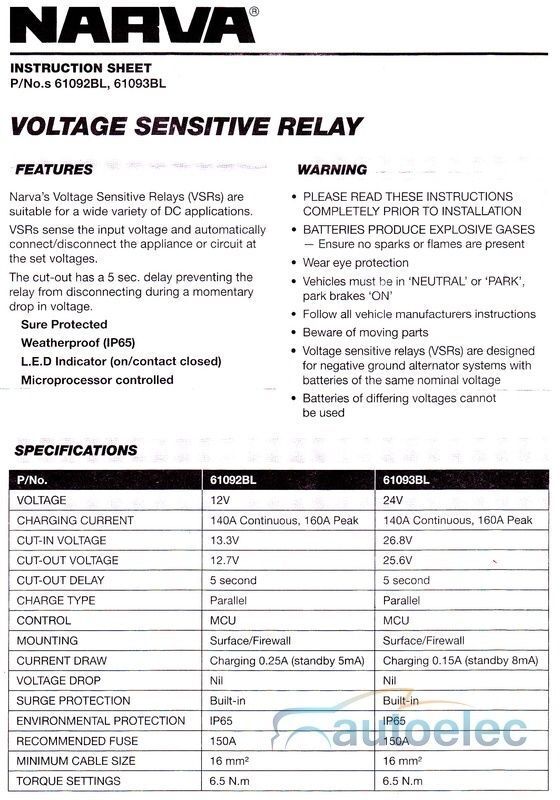

GENUINE NARVA VOLTAGE SENSITIVE RELAY MODEL P/N 61092BL





Narva's voltage Sensitive Relays (VSRs) are suitable for a wide variety of DC applications. VSRs sense the input voltage and automatically connect/disconnect the appliance or circuit at the set voltages. The cut-out has a 5 second delay preventing the relay from disconnecting during a momentary drop in voltage.

, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

FEATURES
	Sure protected
	Weatherproof (IP65)
	L.E.D Indicator (on/contact closed)
	Microprocessor controlled
SPECIFICATIONS
	Voltage	12V
	Charging current	140A Continuous, 160A Peak
	Cut-in voltage	13.3V
	Cut-out voltage	12.7V
	Cut-out delay	5 second
	Charge type	Parallel
	Control	MCU
	Mounting	Surface/firewall
	Current draw	Charging 0.25A
		Standing 5mA
	Voltage drop	Nil
	Surge protection	Built-in
	Environmental protection	IP65
	Recommended fuse	150A
	Minimum cable size	16mm2
	Torque settings	6.5 N.m
