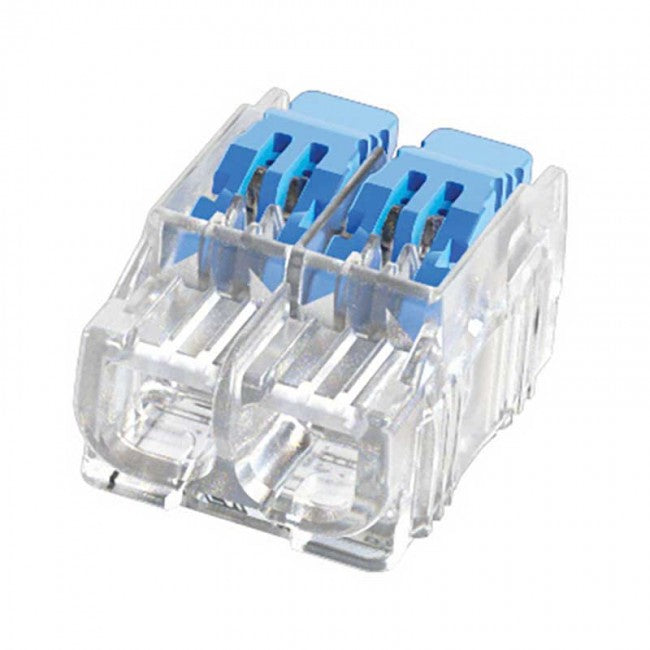

Ideal Electrical 2 Port GEN II Lever Wire Connector 0.14-4mmý, 32A (Jar of 100)

Ideal Electrical  |  SKU: IDE-IDL30-0092J
Cash
$52.20
Standard price
Pro
$50.63
With tools.com Pro
Finance
$1.07
/week
More options
Join Proto save $1.57
Save on every purchase
Theft replacement plan
Try 14 days of tools.com Pro free. Cancel anytime

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes. It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector - for solid, stranded and flexible wires
  • Innovative levers - opens in the opposite direction of insertion points
  • Compact design - suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection
  • Secure your cables in seconds - no screwdriwer, no crimping, just strip, push, connect

Wire Crimping Range

  • 0.2 mm2 to 4.0 mm2 (24 - 12 AWG) for solid and rigid stranded wires (= 7 strands)
  • 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires

Specifications

  • Rating: IEC 60998 - 32A, 450V, 85øC (ambient) / UL 486C - 600V, 105øC (working)
  • Approvals: Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
  • Approvals:11:11CE, UKCA, UL and ENEC approved


Part Number: IDL30-0092J

Brand: Ideal Electrical

Depth (mm): 19

Width (mm): 13

Height (mm): 9

Pack Quantity: 100

Unit of Measure: Jar

Vendor Part Number: 30-0092J
