Dayco Automatic Belt Tensioner Hyundai i45 iX35 Santa Fe Sonata Kia Cerato

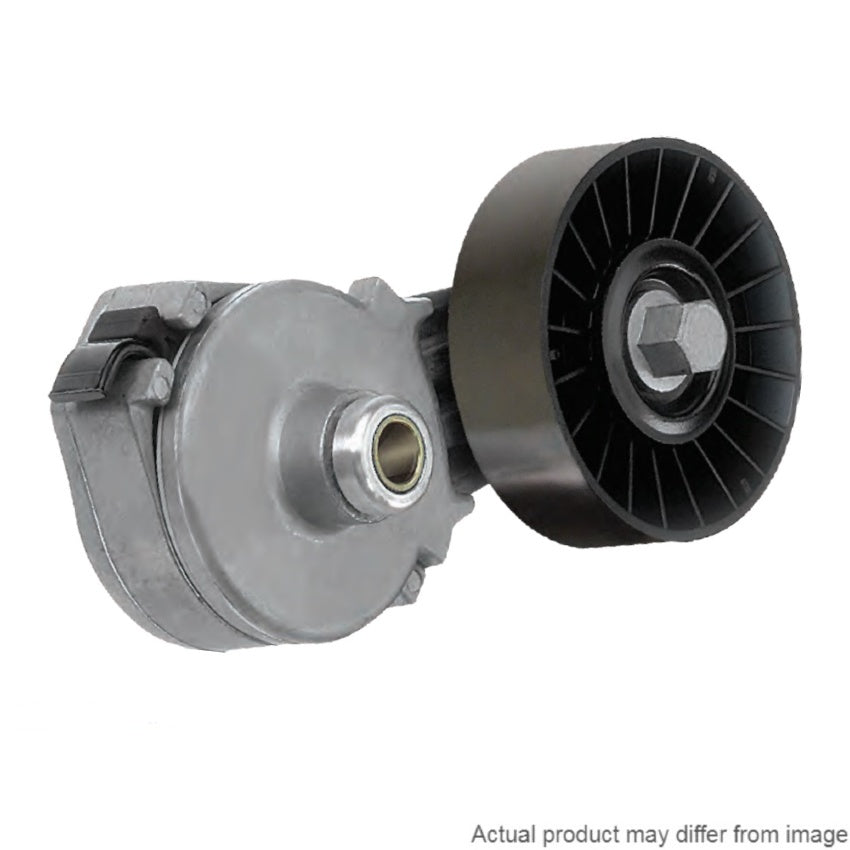

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

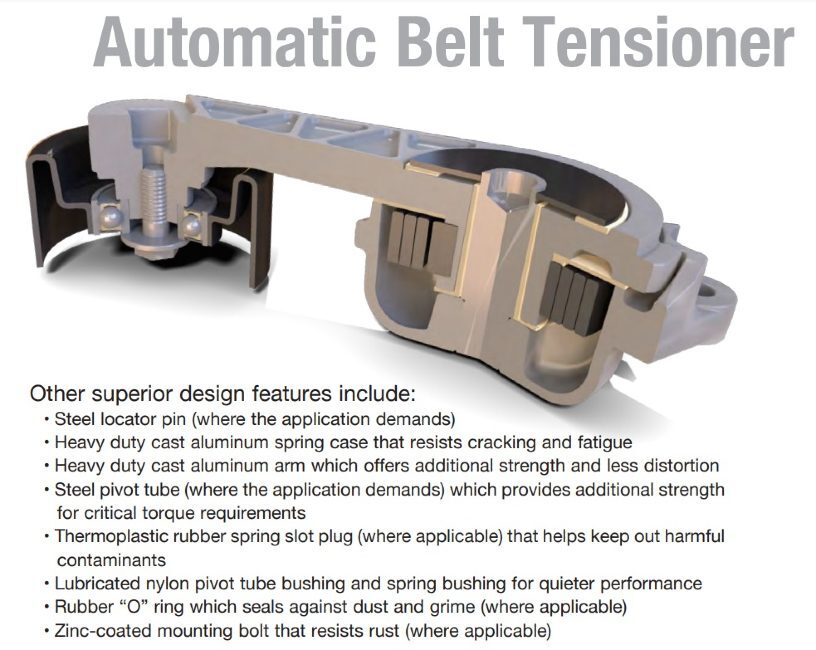

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Hyundai > i45 > May 2010 - , 2.4L, 4 cyl, 16V, DOHC, MPFI, YF, 148kW, EngCode: G4KJ

Hyundai > i45 > May 2011 - , 2.0L, 4 cyl, 16V, V-DOHC, MPFI, YF, 121kW, EngCode: G4KD

Hyundai > iX35 > Feb 2010 - Sep 2013, 2.0L, 4 cyl, 16V, DOHC, MPFI, LM, 122kW, EngCode: G4KD

Hyundai > iX35 > Feb 2010 - Sep 2013, 2.4L, 4 cyl, 16V, DOHC, MPFI, LM, 130kW, EngCode: G4KE, AWD

Hyundai > iX35 > Oct 2013 - , 2.4L, 4 cyl, 16V, DOHC, MPFI, LM, 136kW, EngCode: G4KJ, AWD

Hyundai > Santa Fe > Nov 2009 - Apr 2013, 2.4L, 4 cyl, 16V, DOHC VVT, MPFI, CM, EngCode: G4KE

Hyundai > Santa Fe > Sep 2012 - Sep 2015, 2.4L, 4 cyl, 16V, DOHC, MPFI, DM, 141kW, EngCode: G4KJ

Hyundai > Sonata > Jun 2005 - May 2008, 2.4L, 4 cyl, 16V, DOHC, MPFI, NF, 118kW, EngCode: G4KC

Hyundai > Sonata > Jun 2008 - Apr 2010, 2.4L, 4 cyl, 16V, DOHC, MPFI, NF, 127kW, EngCode: G4KE

Hyundai > Sonata > Dec 2014 - , 2.4L, 4 cyl, 16V, DOHC VVT, MPFI, LF, 138kW, EngCode: G4KJ

Kia > Cerato > Jan 2009 - Sep 2013, 2.0L, 4 cyl, 16V, DOHC, MPFI, TD, 115kW, EngCode: G4KD

Kia > Magentis > Aug 2006 - Mar 2010, 2.4L, 4 cyl, 16V, V-DOHC, MPFI, MG, 119kW, EngCode: G4KC

Kia > Optima > Jan 2011 - Oct 2015, 2.4L, 4 cyl, 16V, V-DOHC, MPFI, TF, 148kW, EngCode: G4KJ

Kia > Optima > Nov 2015 - , 2.4L, 4 cyl, 16V, DOHC VVT, MPFI, JF, 138kW, EngCode: G4KJ

Kia > Rondo > Apr 2008 - May 2013, 2.0L, 4 cyl, 16V, V-DOHC, MPFI, UN, 106kW, EngCode: G4KA

Kia > Sorento > 2012 - 2013, 2.4L, 4 cyl, 16V, DOHC VVT, Direct Inj, XM, 141kW, EngCode: G4KJ

Kia > Sportage > Aug 2010 - May 2013, 2.4L, 4 cyl, 16V, V-DOHC, MPFI, SL, 130kW, EngCode: G4KE

Kia > Sportage > Aug 2010 - Jan 2016, 2.0L, 4 cyl, 16V, V-DOHC, MPFI, SL, 122kW, EngCode: G4KD

Kia > Sportage > Jan 2016 - , 2.4L, 4 cyl, 16V, DOHC VVT, MPFI, QL, 135kW, EngCode: G4KJ
