Dayco Automatic Belt Tensioner Holden Captiva Feb 2011-Jan 2019 2.2L V-DOHC DTFI

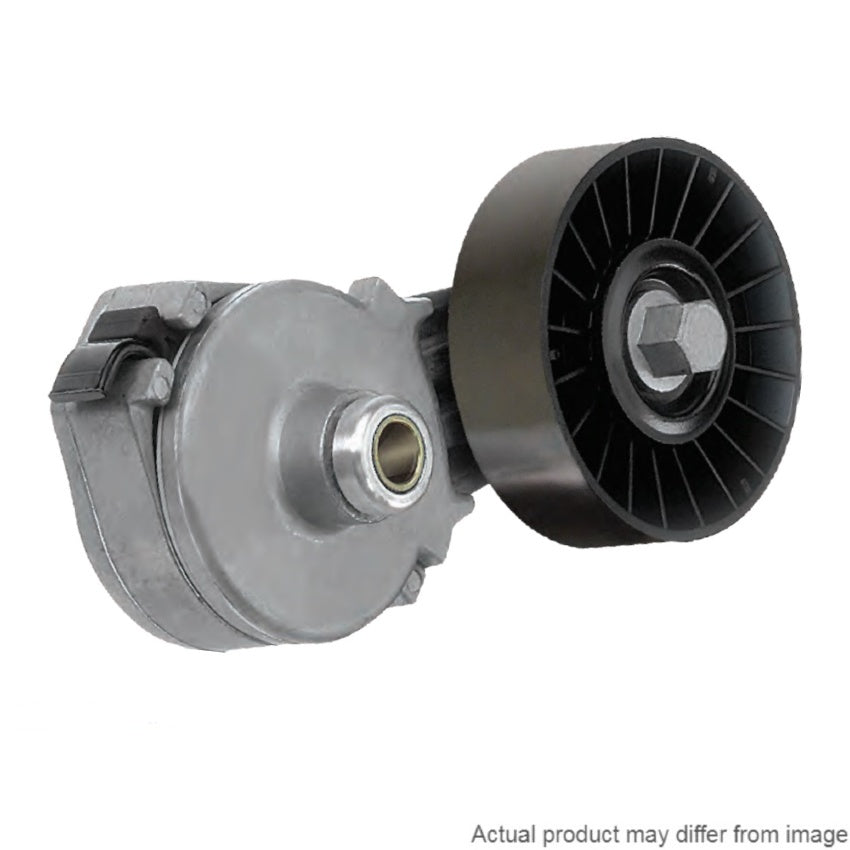

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

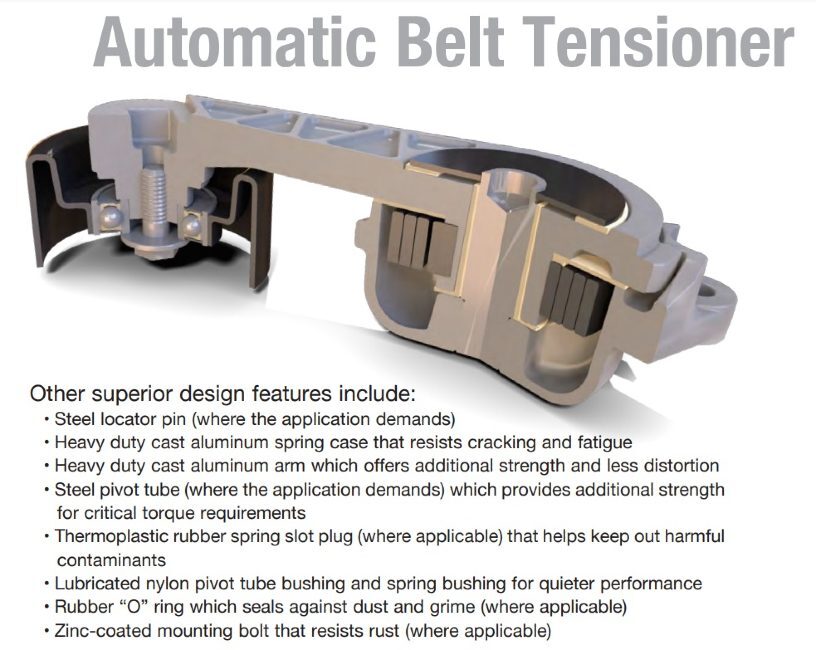

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Holden > Captiva > Feb 2011 - Jan 2019, 2.2L, 4 cyl, 16V, V-DOHC, DTFI, Turbo, Diesel, CGII, 135kW, EngCode: Z22D1 Holden > Cruze > Mar 2011 - Feb 2015, 2.0L, 4 cyl, 16V, SOHC, DTFI, Turbo, Diesel, JH II, 120kW, EngCode: Z20D1
