Dayco Automatic Belt Tensioner Holden Berlina Calais Caprice Commodore Statesman

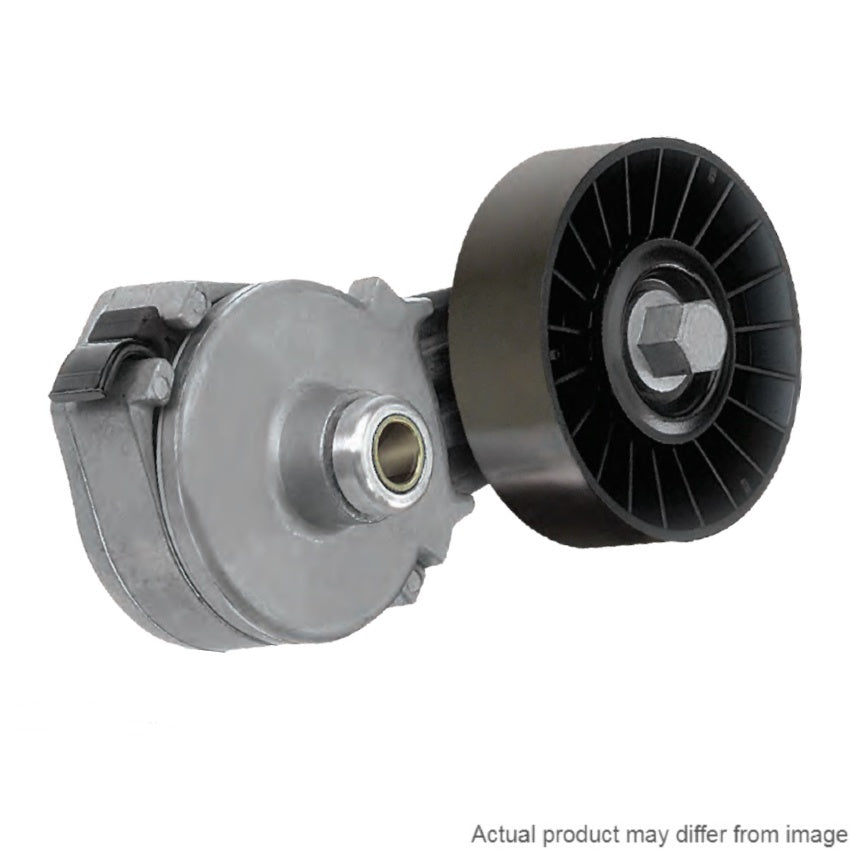

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

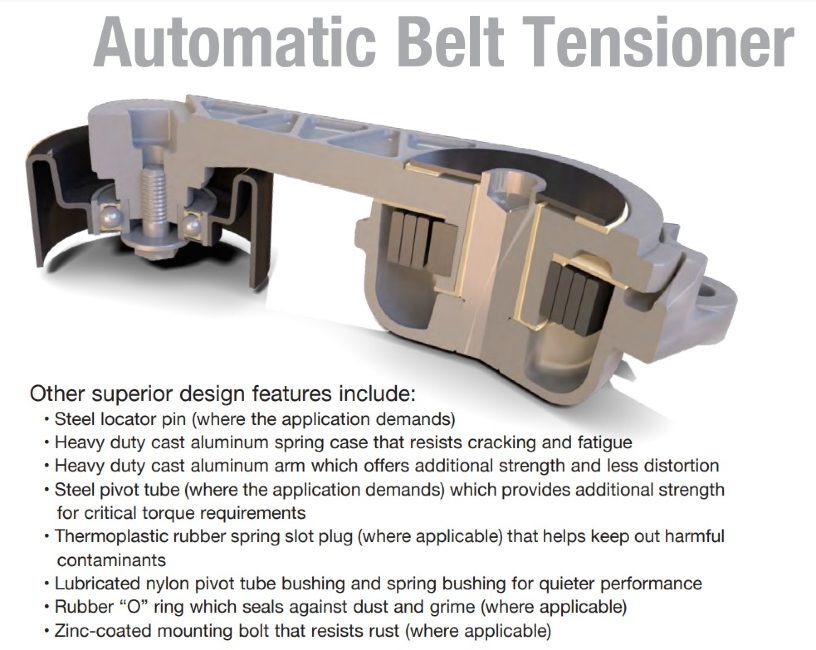

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Holden > Berlina > Aug 1988 - Sep 1991, 3.8L, V6, 12V, OHV, MPFI, VN, 125kW, EngCode: LG2 (LN3)

Holden > Berlina > Oct 1991 - Jul 1993, 3.8L, V6, 12V, OHV, MPFI, VP, 127kW, EngCode: LG2 (L27)

Holden > Berlina > Jul 1993 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: LG2 (L27)

Holden > Calais > Aug 1988 - Sep 1991, 3.8L, V6, 12V, OHV, MPFI, VN, 125kW, EngCode: LG2 (LN3)

Holden > Calais > Oct 1991 - Jul 1993, 3.8L, V6, 12V, OHV, MPFI, VP, 127kW, EngCode: LG2 (L27)

Holden > Calais > Jul 1993 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: LG2 (L27)

Holden > Caprice > Mar 1994 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: LG2 (L27)

Holden > Commodore > Aug 1988 - Sep 1991, 3.8L, V6, 12V, OHV, MPFI, VN, 125kW, EngCode: LG2 (LN3)

Holden > Commodore > Aug 1990 - Dec 1991, 3.8L, V6, 12V, OHV, MPFI, VG utility, 125kW, EngCode: LG2 (L27)

Holden > Commodore > Oct 1991 - Jul 1993, 3.8L, V6, 12V, OHV, MPFI, VP, 127kW, EngCode: LG2 (L27)

Holden > Commodore > Jul 1993 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: LG2 (L27)

Holden > Statesman (From 1990) > Nov 1991 - Feb 1994, 3.8L, V6, 12V, OHV, MPFI, VQ, 127kW, EngCode: LG2 (L27)

Holden > Statesman (From 1990) > Mar 1994 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: LG2 (L27)

HSV > Commodore > Oct 1988 - Aug 1991, 3.8L, V8, 12V, OHV, MPFI, VN, 125kW, EngCode: LG2 (LN3)

HSV > Commodore > Feb 1992 - Jun 1993, 3.8L, V8, 12V, OHV, MPFI, VP, 125kW, EngCode: L27

HSV > Sport > Oct 1991 - Jul 1993, 3.8L, V6, 12V, OHV, MPFI, VP, 127kW, EngCode: L27

Toyota > Lexcen > Sep 1989 - Nov 1991, 3.8L, V6, 12V, OHV, MPFI, VN, 125kW, EngCode: LN3

Toyota > Lexcen > Nov 1991 - Aug 1993, 3.8L, V6, 12V, OHV, MPFI, VP, 127kW, EngCode: L27

Toyota > Lexcen > Nov 1993 - Apr 1995, 3.8L, V6, 12V, OHV, MPFI, VR, 130kW, EngCode: L27
