Dayco Automatic Belt Tensioner Holden Berlina Calais Caprice Commodore Monaro

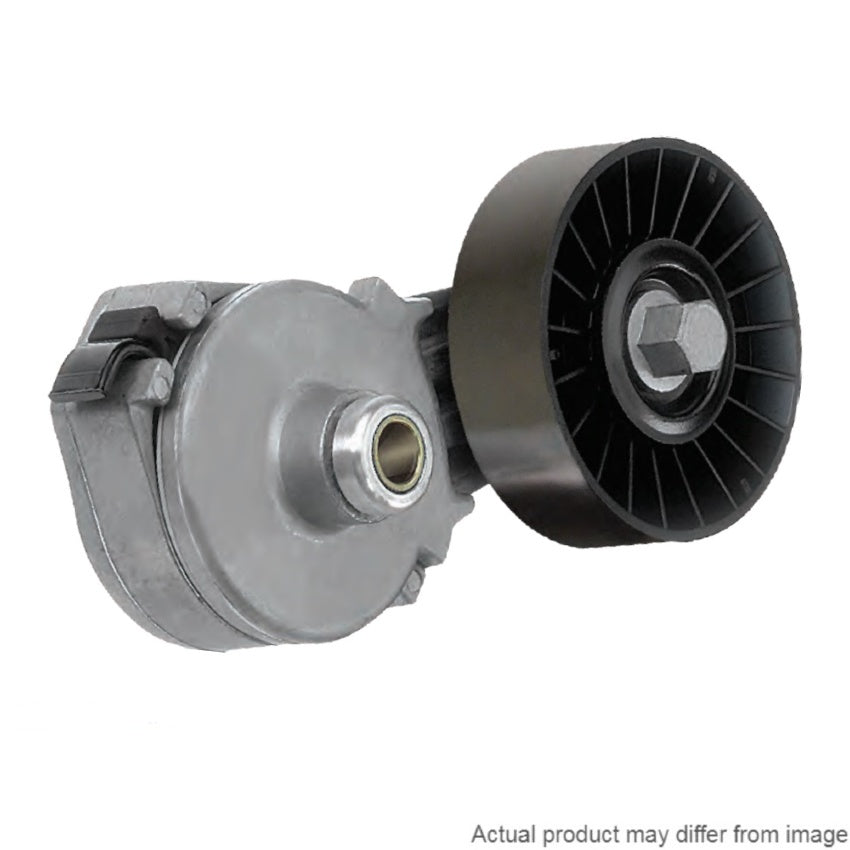

Dayco No Slack Automatic Belt Tensioner

Designed to maintain constant tension on serpentine belt drives
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories.

To maintain the proper tension throughout the drive, an automatic, spring-loaded tensioner is incorporated into the drive system geometry.

Dayco’s Automatic Belt Tensioner features a patented “flat spring” design that’s engineered to provide less operating range variations in tension.

This reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed.

It also lessens the risk of belt squeal and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A Teflon strip wound within the spring resists abrasion.

The flat spring itself is coated to resist rust.

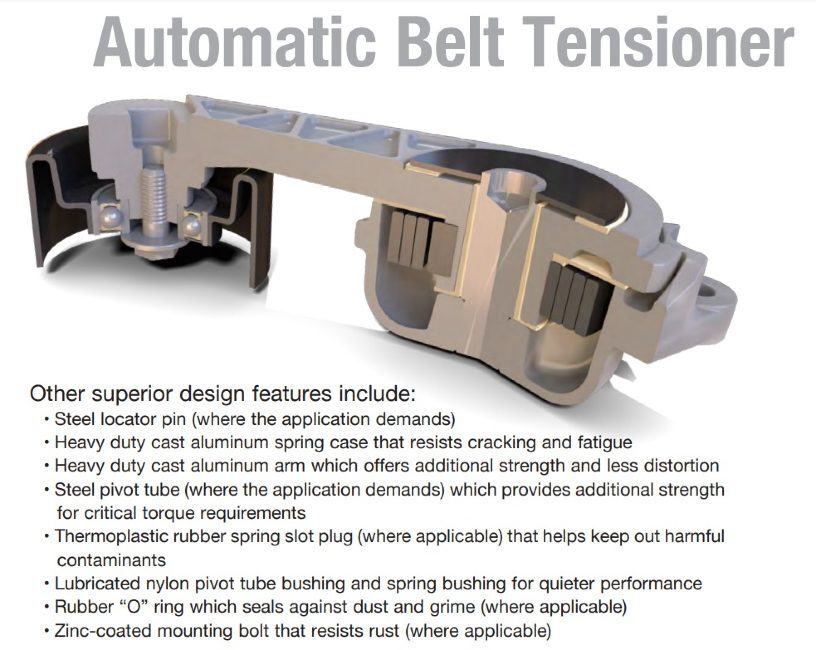

Other superior design features include a steel locator pin (where the application demands).

A heavy-duty cast aluminium spring case resists cracking and fatigue. The heavy-duty cast aluminium arm offers additional strength and less distortion.

An aluminium retainer ring locks the spring case and arm together, and seals against corrosion.

A steel pivot tube (where the application demands) provides additional strength for critical torque requirements.

A thermoplastic rubber “spring slot plug” keeps out harmful contaminants. The lubricated nylon “pivot tube bushing” and “spring bushing” promote quieter performance.

A rubber “O” ring seals against dust and grime.

The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.

In order to meet OEM performance standards, Dayco Automatic Tensioners come with either a glass-filled polymer (plastic) or steel pulley, that features a dust cover to protect against contaminants.

Fits the following Make, Model, Series:

Holden > Berlina > Jun 1999 - Oct 2000, 3.8L, V6, 12V, OHV, MPFI, VT (Supercharged), 171kW, EngCode: L67

Holden > Berlina > Oct 2000 - Sep 2002, 3.8L, V6, 12V, OHV, MPFI, VX (Supercharged), 171kW, EngCode: L67

Holden > Calais > Sep 1996 - Aug 1997, 3.8L, V6, 12V, OHV, MPFI, VS (Supercharged), 165kW, EngCode: L67

Holden > Calais > Aug 1997 - Oct 2000, 3.8L, V6, 12V, OHV, MPFI, VT (Supercharged), 171kW, EngCode: L67

Holden > Calais > Oct 2000 - Sep 2002, 3.8L, V6, 12V, OHV, MPFI, VX (Supercharged), 171kW, EngCode: L67

Holden > Calais > Sep 2002 - Aug 2004, 3.8L, V6, 12V, OHV, MPFI, VY (Supercharged), 171kW, EngCode: L67

Holden > Caprice > Jun 1999 - Oct 2000, 3.8L, V6, 12V, OHV, MPFI, WH, 171kW, EngCode: L67, Supercharged

Holden > Caprice > Oct 2000 - Apr 2003, 3.8L, V6, 12V, OHV, MPFI, WH, 171kW, EngCode: L67, Supercharged

Holden > Commodore > Sep 1997 - Oct 2000, 3.8L, V6, 12V, OHV, MPFI, VT (Supercharged), 171kW, EngCode: L67

Holden > Commodore > Sep 2002 - Aug 2004, 3.8L, V6, 12V, OHV, MPFI, VY (Supercharged), 171kW, EngCode: L67

Holden > Monaro (From 2001) > Dec 2001 - Aug 2003, 3.8L, V6, 12V, OHV, SCMPFI, V2, 171kW, EngCode: L67, Supercharged

Holden > Statesman (From 1990) > Oct 1996 - Jun 1999, 3.8L, V6, 12V, OHV, MPFI, VS (Supercharged), 165kW, EngCode: L67

Holden > Statesman (From 1990) > Jun 1999 - Jul 2004, 3.8L, V6, 12V, OHV, MPFI, WH WK, 171kW, EngCode: L67, Supercharged

HSV > Grange > Jul 1999 - Sep 2000, 3.8L, V6, 12V, OHV, MPFI, WH, 180kW, EngCode: L67, Supercharged

HSV > XU6 > Sep 1998 - Oct 2000, 3.8L, V6, 16V, OHV, SCMPFI, VT, 180kW, EngCode: L67, Supercharged

HSV > XU6 > Sep 2000 - Oct 2002, 3.8L, V6, 16V, OHV, SCMPFI, VX, 180kW, EngCode: L67, Supercharged
