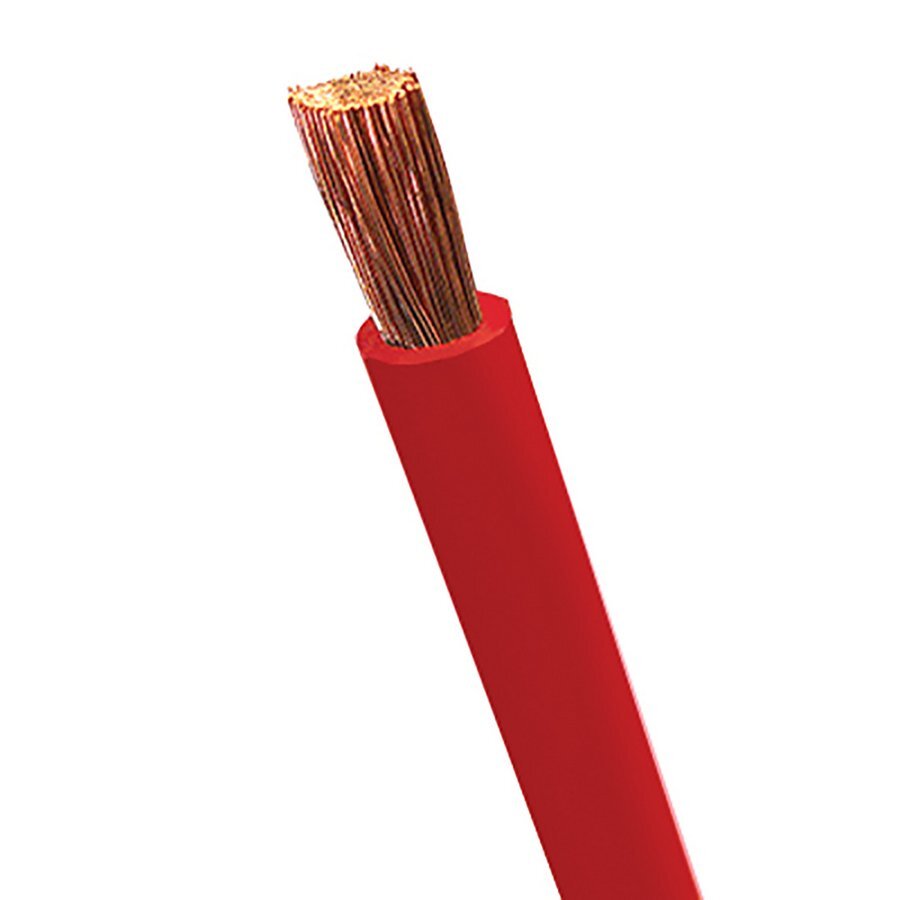

Automotive Battery Cable Red Size 000 Stranding 1204 .30 30M Roll

KT Automotive Battery Cable is Manufactured in Australia and made from copper sourced from Australia. Automotive Battery Cable is designed for applications including powering electrical systems such as Dual Battery Systems, Solar Applications providing power to Trailer Accessories and more. Automotive Battery Cable is sized according to the American Wire Guage (AWG) specifications. For Marine applications, we recommend using Marine Tinned Battery Cable.

Applications:

Battery & Starter Cable

Conductor:

Plain Copper Wire - Mined & Manufactured in Australia

Insulation:

75 degrees C PVC to AS3808

Number of Cores:

1

Size:

000

Number of Strands:

1204/.30

Area (mm2):

85.00mm2

Amp Rating:

430 Amps

Insulation Thickness (mm):

2.00mm

O.D (mm):

16.10mm

Roll Length:

30M (Also Available in 100M)

Sheath Colour:

Red (Also Available in Black)

Notes:

A number of accessories are available for use with Automotive Battery Cable including Copper Lugs, Battery Terminals, Cable Glands, Heat Shrink, and More.
