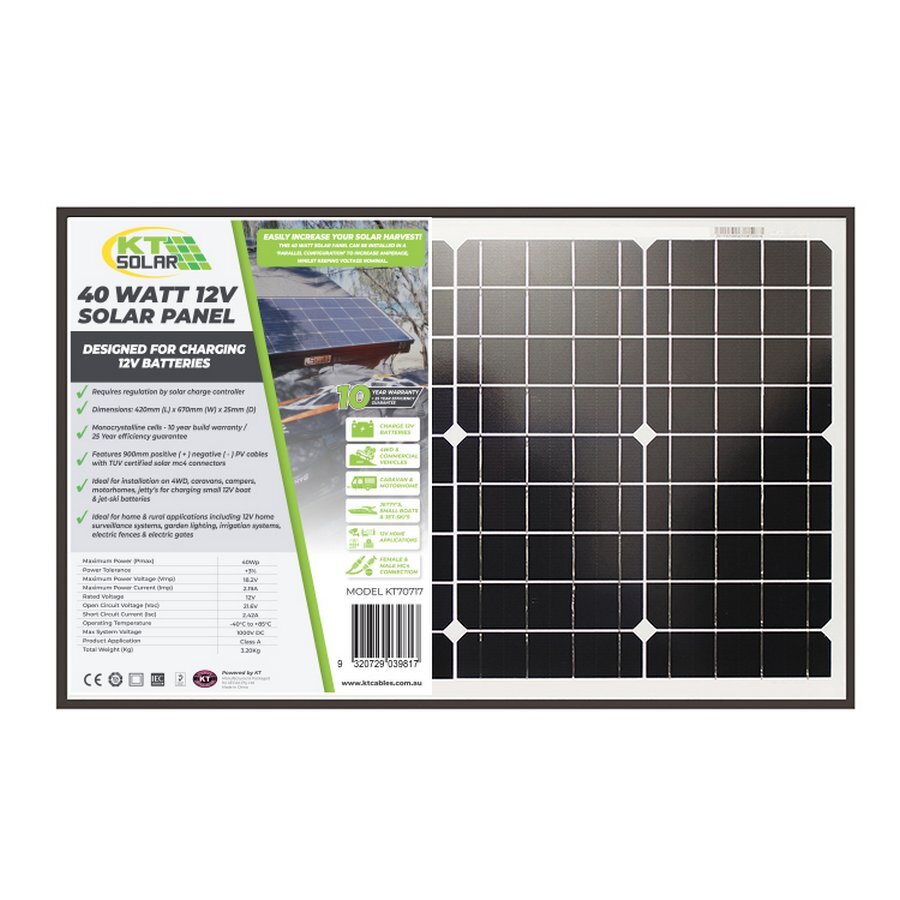

40 Watt 12V Single Cell Mono-crystalline Solar Panel
40 Watt 12V Single Cell Mono-crystalline Solar Panel is backordered and will ship as soon as it is back in stock.
Designed for installation on 4WD, caravans, campers, motorhomes & jettys for charging small 12V boat & jet-ski batteries.
Ideal for home & rural applications including 12V home surveillance systems, garden lighting, irrigation systems, electric fences & electric gates.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70755 - 8 Amp PWM Solar Charge Controller.
Features 900mm PV cables terminated to male & female TUV certified solar connectors.
Dimensions & Weight:
- Dimensions (Height): 420mm
- Dimensions (Length): 670mm
- Dimensions (Depth): 25mm
- Panel Weight: 3.20Kg
Features:
- Designed for maintenance charging (trickle-charging) 12V batteries
- Ideal for installation on 4WDs, caravans, motorhomes, jettys for charging small 12V boat & jet-ski batteries
- Ideal for 12V home surveillance systems, garden lighting, irrigation, electric fences/gates
- Requires regulation by solar charge controllers
- Connect to batteries with 900mm PV cables with positive (+) & negative (-) TUV certified connectors
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme
Specifications:
| Power Tolerance | +3% |
| Maximum Power (Pmax) | 40Wp |
| Maximum Power Voltage (Vmp) | 18.2V |
| Maximum Power Current (Imp) | 2.19A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 2.42A |
| Operating Temperature | -40 degrees to +85 degrees |
| Product Application | Class A |
| Max System Voltage | 1000V DC |
