160W 24-48V Truck Bus & Yacht Solar Charging System

Designed & innovated by KT Solar. This system is designed to suit prime mover truck cabin roofs, caravans, small commercial buses including Toyota Coasters and marine vessels.

This system works in conjunction with the Victron 100-20 MPPT Solar Controller. The Solar Panel is a higher nominal voltage than 24V, however the Victron controller automatically steps down to provide the correct voltage and current.

Dimensions & Weight:

• Panel Dimensions (mm): 1280 x 800 x 35
• Panel Weight: 11.80Kg

Features:

• Operates on 24-48V systems
• Premium MPPT 100-20 Victron solar controller
• Maintains and extends battery life & reduces sulphur buildup D.O.D (depth of discharge)
• Reduces 240 volt charging time & associated cost
• Five accreditation certificates
• Individually barcoded for warranty registration

Warranty & Guarantees:

• 10 year warranty / 25 year efficiency on solar panel
• 5 year warranty on MPPT solar controller
• 3 year warranty on complete kit

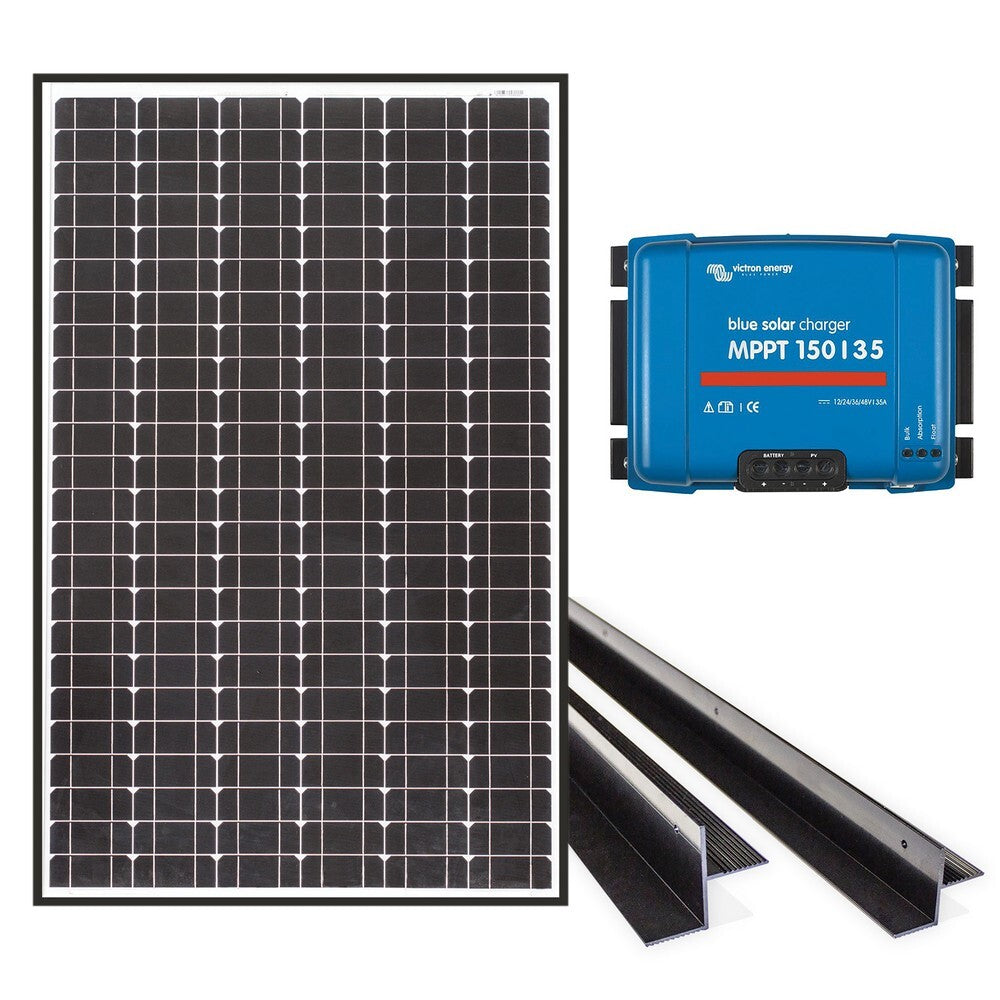

Kit Includes:

• Premium quality MPPT Solar Controller (IP43 & IP22 Rated)
• 144 cell 160W monocrystalline solar panel
• 2 x EZY mounting rails, 800mm length

For the trucker who may be roadside for extended periods, off the road, or boaters on moorings.
