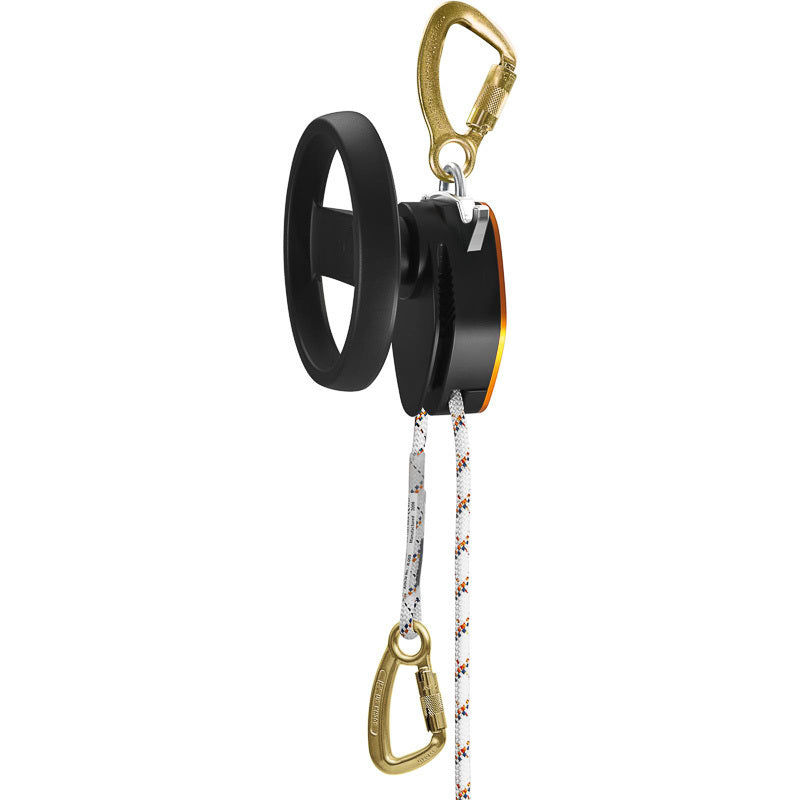

Milan 2.0 Hub Rescue & Evacuation Device

MILAN 2.0 HUB is THE industrial standard rescue device, including an additional lifting function.

With the help of the handwheel, the casualty can be lifted over a short distance to release his lanyard and lower him safely.

The device is optimized for the accompanied rescue of persons.

- user weight of up to 280 kg with deflection

- intuitive operation due to rope guide and brake in the housing

- lifting procedure with handwheel

Note: When working at heights, a suitable rescue concept based on a risk assessment is essential.

MILAN offers a variety of applications for different rescue scenarios.

To master these techniques, the user must be carefully trained by a SKYLOTEC-certified instructor who has been specially trained on the device.

Max weight capacity: 260 KG

Colour: orange/black/white

Art. no.	A-028
EAN	4030281155850
Intert. standard	ANSI Z359.4:2013, MEETS CSA Z259.2.3-1B:2012
Standard	DIN EN 1496-A:2017, DIN EN 341-1A:2011
Abseiling speed	0,90 m/s
Abseiling height	500,00 m
E-class number	40-02-01-06
Max. service life	20 Years
Max. number of persons	2
Rated load	260 KG
Temperature	60 ¬?C - -35 ¬?C
Suspension element	KM9
Area of application	Fire brigade / Rescue / Special Forces, Lift Construction, Power Supplies / -Transmission / Telecommunications, Rope Courses, Wind Energy / Offshore Industry
Customs no.	84251900
Weight	5,05 kg
On the lanyard ends	KOBRA TW
Material	Aluminium, Steel, Polyamide
