PROJECTA 100 AMP DUAL BATTERY ISOLATOR KIT MODEL VSR100K WITH SWITCHED OVERRIDE, BRAND NEW IN SEALED PACK WITH FULL NATIONWIDE Manufacturer Warranty
FEATURES
This voltage sensitive relay kit is an affordable, reliable and easy to install dual battery management system that includes everything required for an easy and professional installation. The VSR Kit requires no modification to the vehicle’s wiring, and is fully sealed (IP66) with 4m of main cable allowing the auxiliary battery to be mounted either side of the engine bay.

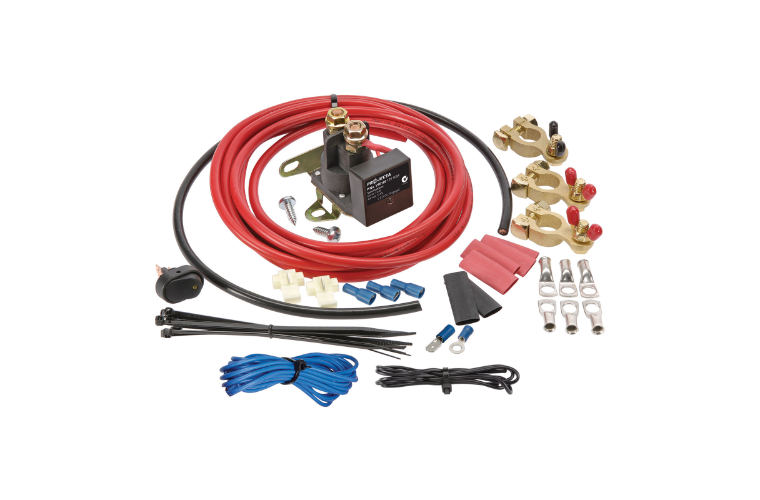

INCLUDES
100A voltage sensitive relay (P/No. VSR100)
Rocker switch, lugs, terminals, heat shrink and cable ties
4m main cable and 60cm aux earth cable
Auxiliary battery terminals (2 x pos, 1 x neg)
SPECIFICATIONS
, ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, ,
Voltage | 12V | |
Charging current | 100A Continuous | |
200A Peak | ||
Cut-in voltage | 13.4V | |
Cut-out voltage | 12.8V | |
Cut-out delay | 8 seconds | |
Min operating voltage | 10V | |
Charge type | Parallel | |
Control | MCU | |
Mounting | Surface/Firewall | |
Current draw | Charging 550mA (standby 10mA) | |
Surge protection | Built-in | |
Ingress protection | IP66 | |
Override | Requires minimum 10V | |
Recommended fuse | 150A | |
Cable size | 14mm2 (6 B&S) | |
Approvals | EMC | |
L.E.D charge indication | ||
Red light | Power on |
