Projecta SC320D Remote 20 Amp Solar Panel Regulator Controller 12 Volt Charger
Projecta SC320D Remote 20 Amp Solar Panel Regulator Controller 12 Volt Charger is backordered and will ship as soon as it is back in stock.

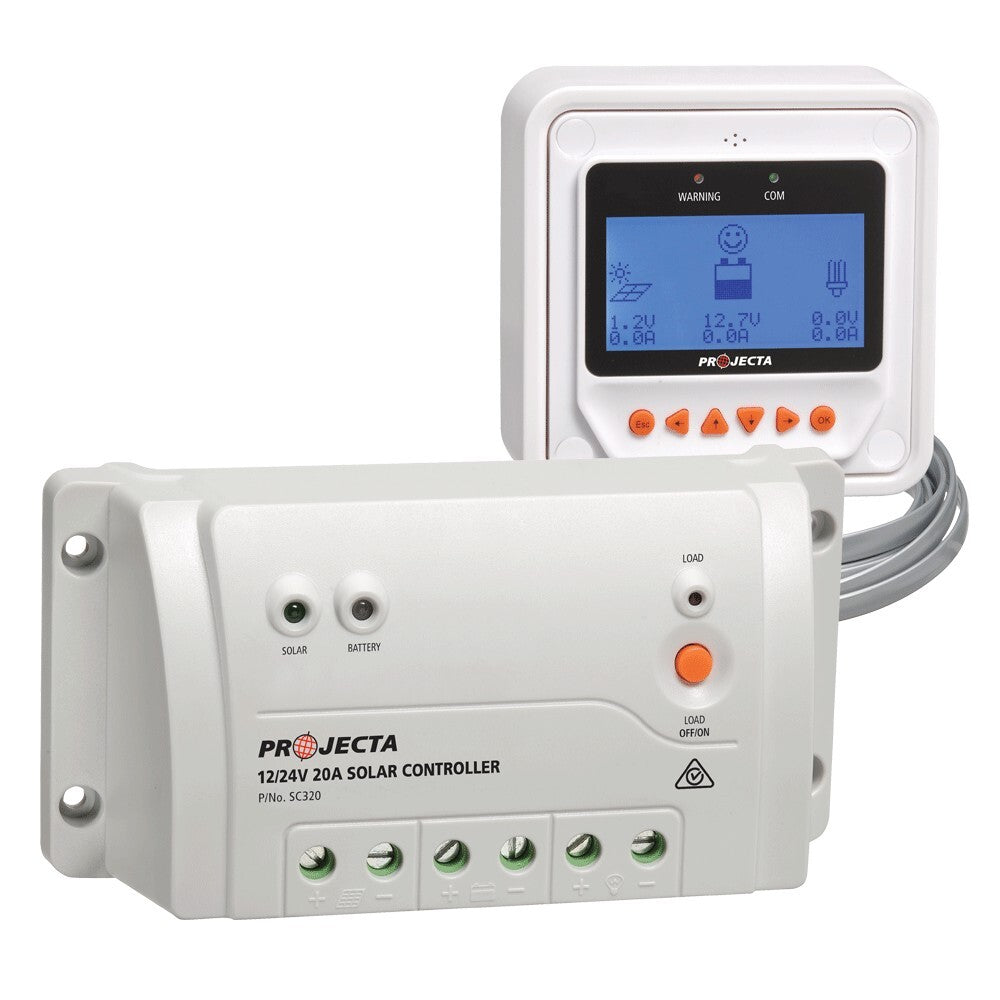

AUTOMATIC 12/24V 20A 4 STAGE SOLAR CHARGE PREMIUM CONTROLLER WITH REMOTE CONTROL
PART NO SC320D

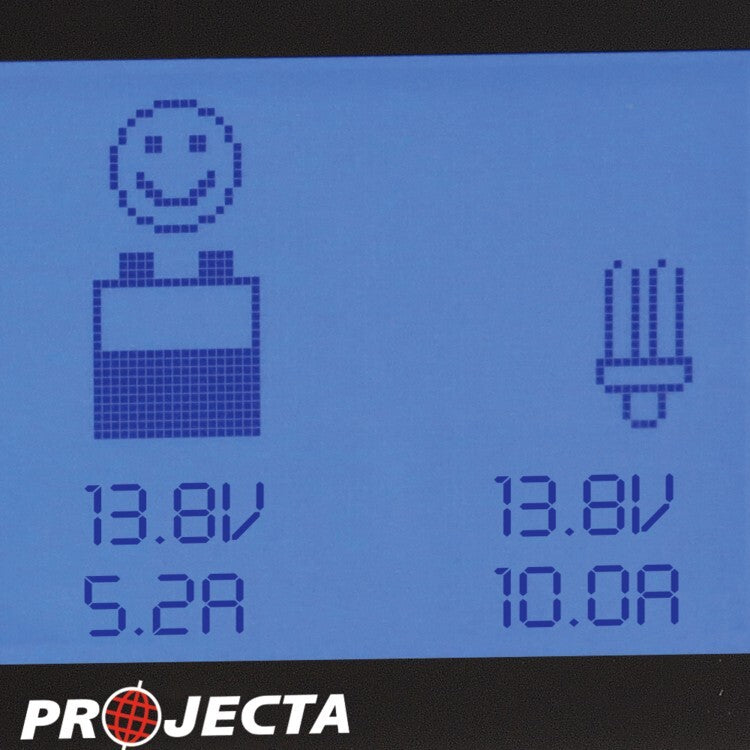

The ideal controller to suit panels producing up to 20A, often found in caravans. The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.
FEATURES
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings

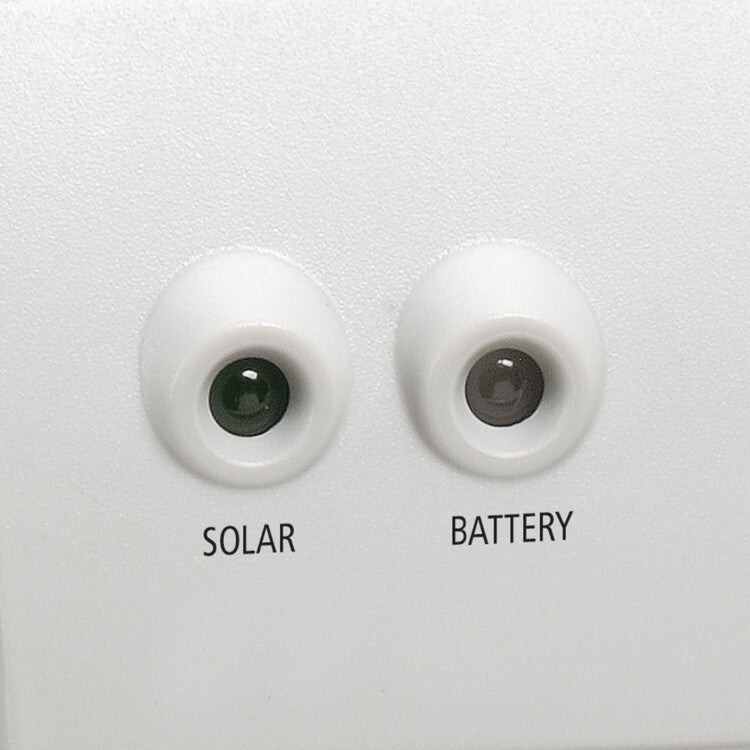

L.E.D status indicators
Displays quick reference to charge and battery status

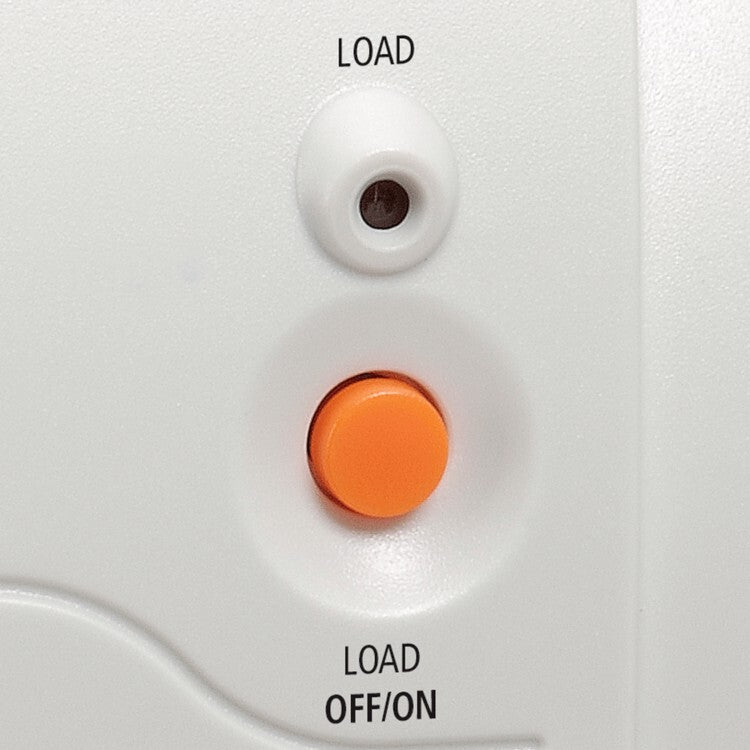

Manual load control
Allows user to switch the DC load on/off from the controller itself

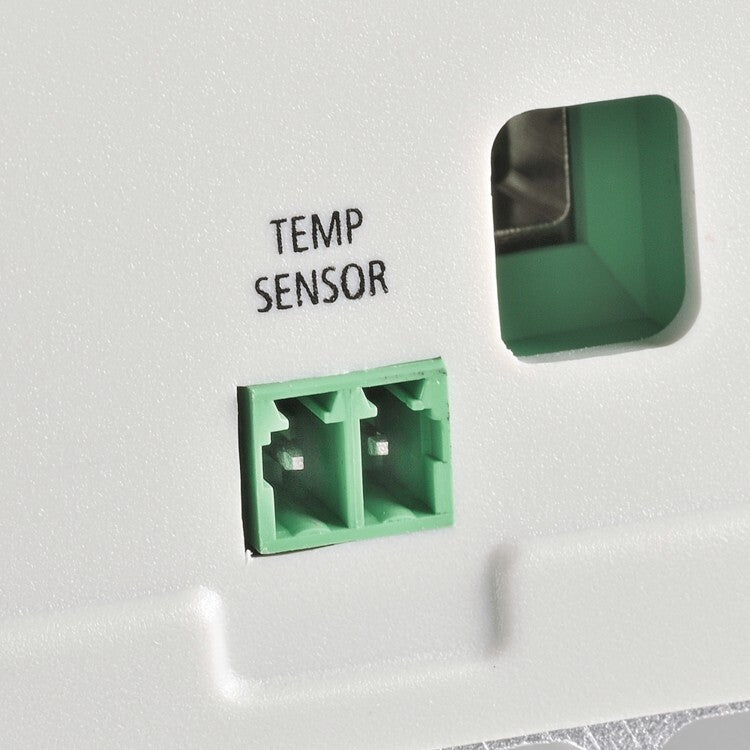

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge.
| SPECIFICATIONS | |||||||
|---|---|---|---|---|---|---|---|
| PART NO | SC320D | ||||||
| INPUT | 12 or 24V | ||||||
| MAX INPUT | 50VDC, 20A | ||||||
| MAX CHARGE / LOAD | 20A | ||||||
| MAX PANEL SIZE | 240W (12V) | ||||||
| LOAD SWITCHING | Negative | ||||||
| BATTERY | 12V or 24V | ||||||
| CHARGE CONTROL |
| ||||||
| LVD DISCONNECT |
| ||||||
| LVD RECONNECT |
| ||||||
| STANDBY CURRENT | 23.4mA | ||||||
| APPROVALS | EMC | ||||||
