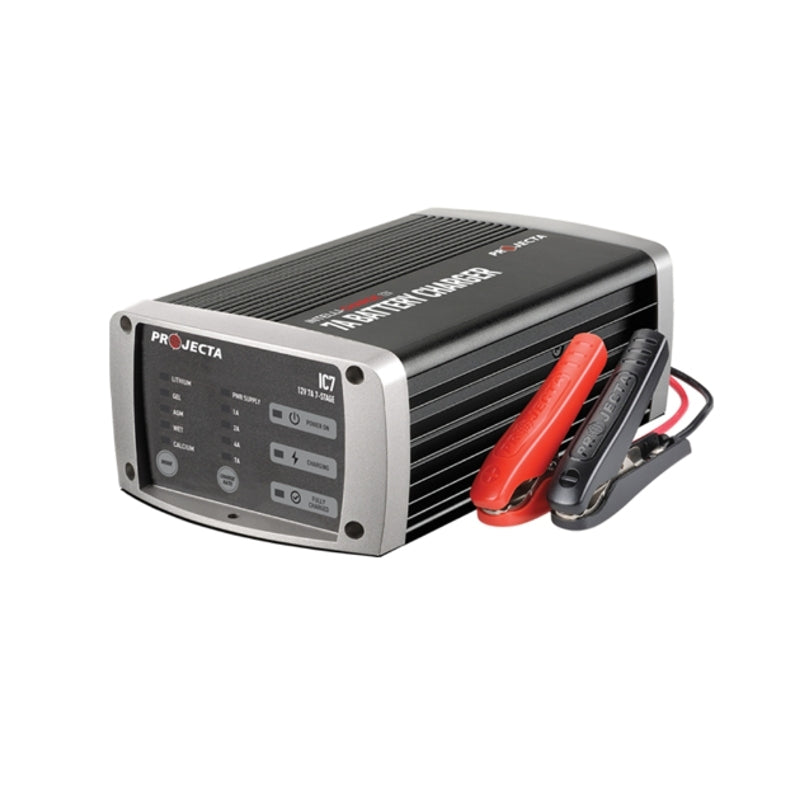

Projecta IC7 12V Automatic 7 Amp 7 Stage Multi Chemistry Lithium Battery Charger

The Projecya OC7 delivers a high quality charge tailored to suit all battery chemistry types.

Ideal for use on smaller passenger vehicles through to 4WDs.

Comes with a 5 year warranty..

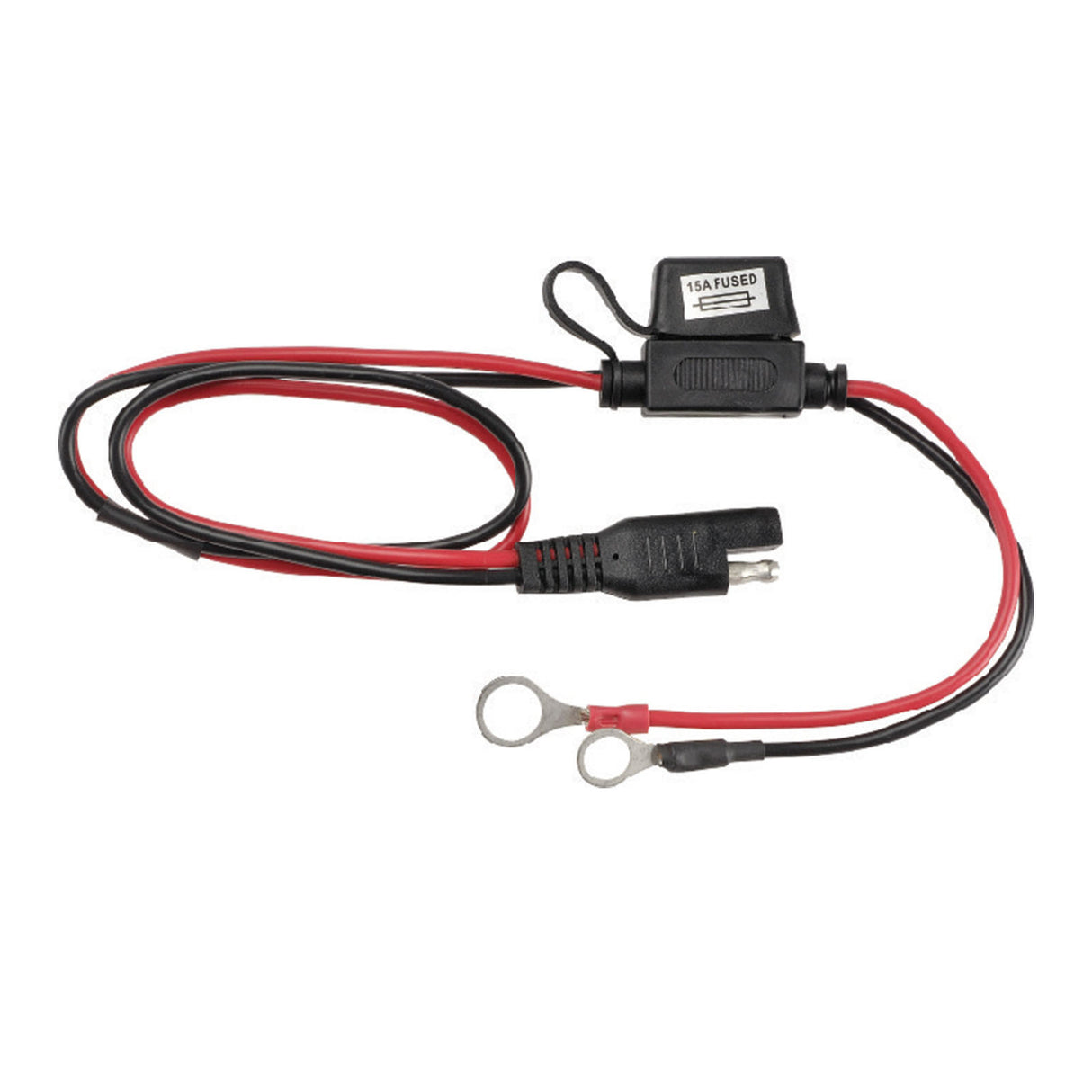

FUSED WIRING HARNESS - 0.6m harness allows permanent connection and features polarity protection

ADJUSTABLE OUTPUT: Adjustable for different battery sizes for precise charging

POWER SUPPLY MODE: Retains vehicle computer settings when changing a battery or can run 12V appliances

MULTI-CHEMISTRY: Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, Gel or Lithium

Specifications

Model No: IC7
Type: 7 Stage Automatic
Input: 240VAC, 50Hz, 110W
Output 12V
Output Current: 1, 2, 4, 7A
Minimum Start Voltage: 2.0V
Back Drain: 1mA
Approvals: Electrical Safety, EMC
Charge Voltage: 14.1V (Gel), 14.4V (AGM), 14.7V (Wet), 16.0V (Calcium), 14.2V (Lithium)

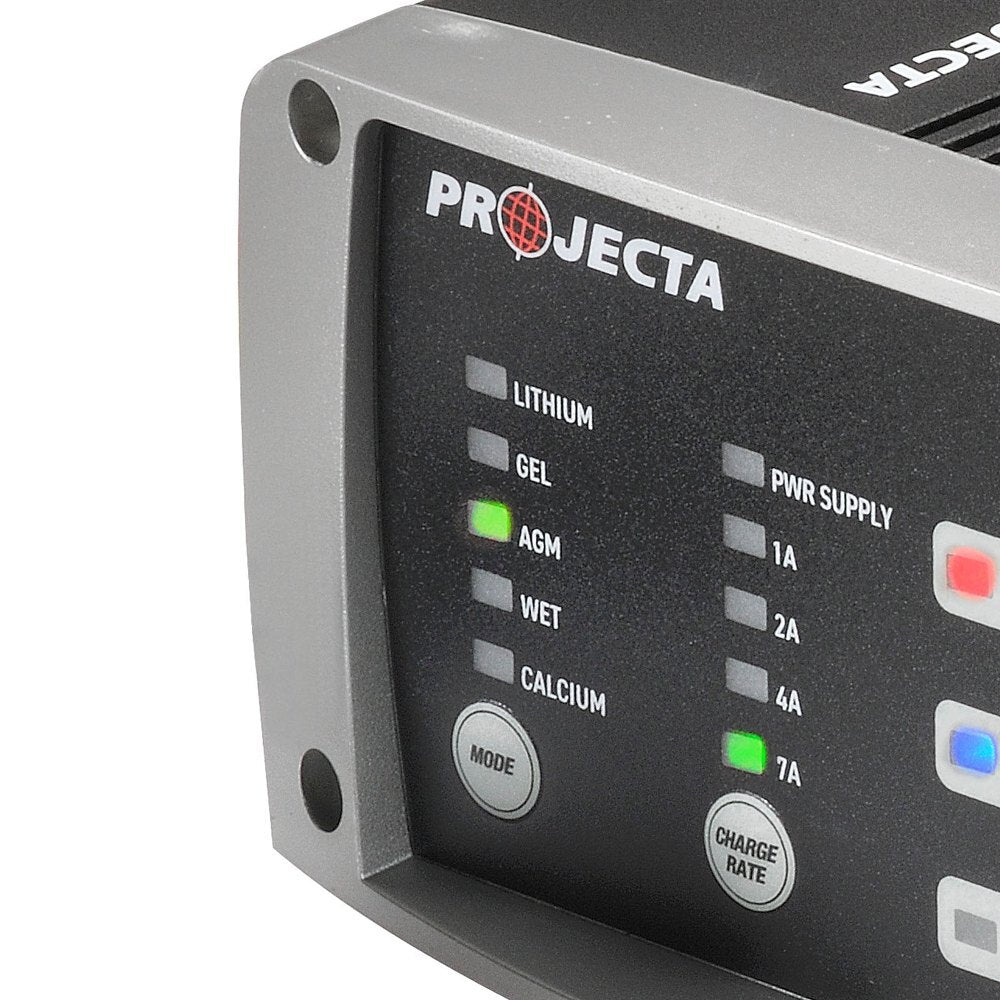

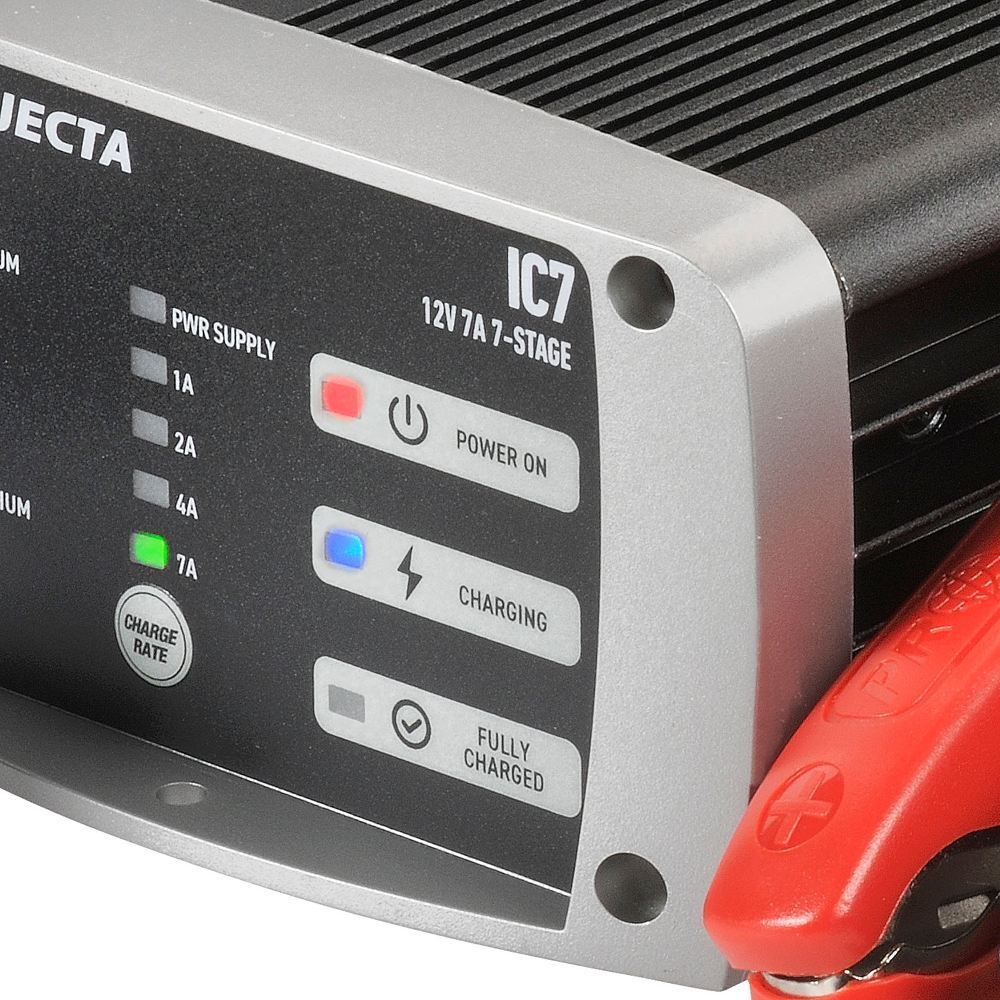

LED Charge Indication

Red Light On: Power On
Blue Light On: Charging
Green Light On: Full charged and maintaining, no need to turn the charger off

Battery Charge Times

Automotive - 12V - 40-800CCA - 6-12 hours
Marine     - 12V - 55-900MCA - 8-15 hours
Deep Cycle - 12V - 7-140Ah   - 6-20 hours
Lithium    - 12V - 2-70Ah    - 2-10 hours
