Projecta Ic3500 7 Stage Charger 12V 35 Amp Agm Deep Cycle Gel Calcium Caravan
Projecta Ic3500 7 Stage Charger 12V 35 Amp Agm Deep Cycle Gel Calcium Caravan is backordered and will ship as soon as it is back in stock.
PROJECTA BATTERY CHARGER MODEL P/N IC3500
*Manufacturer Warranty The manufacturer supplies a 2 year Manufacturer Warranty nationwide.
7 Stage Charging
Intelli-Charge battery chargers use intelligent electronics to monitor the charging process and deliver an advanced 7-stage charge to your battery. 7-stage charging is a very comprehensive and accurate charging technique that gives your battery longer life and better performance compared to using traditional chargers.
Multi Chemistry
The multi chemistry function allows you to set the charging profile to suit the battery’s chemistry type (GEL, AGM, WET and Calcium). This ensures correct and thorough charging and maximises battery performance and battery life.
Adjustable Current
Intelli-Charge allows you to adjust and select the charge rate from as low as 2 Amps to best suit the size of your batteries.
Power Supply
In the larger models (25, 35, 50A, 8A/24V), power supply operates as a float charge (constant voltage) and is ideal for maintaining a battery while running an appliance or load from the battery without risk of overcharging the battery.

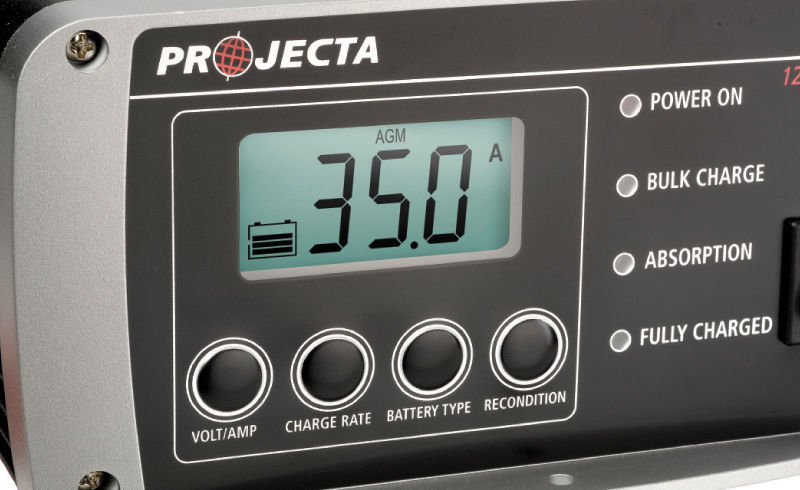

User Friendly Controls
All Intelli-Charge chargers feature user-friendly displays so you can quickly customise the charge settings and monitor the charger’s performance. What’s more, the chargers remember the last settings used even when the power has been turned off.

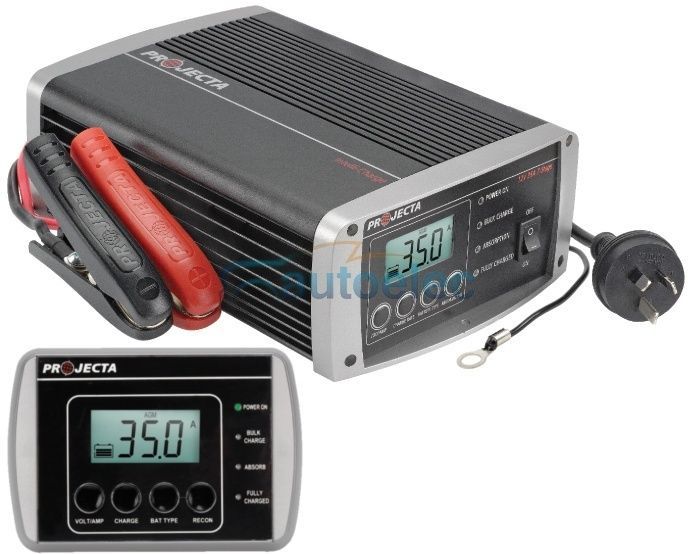

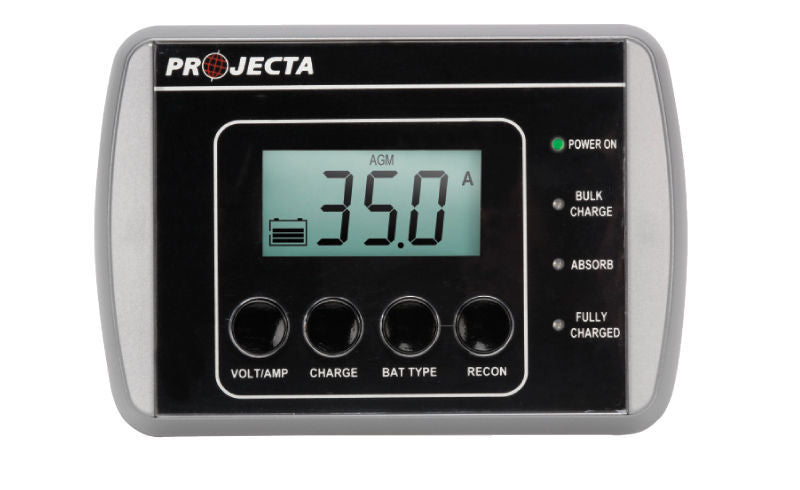

LCD Display & Remote Control
Control and monitor the charger’s performance from a remote control display, allowing the charger to be mounted out of the way and out of sight. The battery charger and remote are synchronised for operation either locally or by remote.
Temperature Compensation
The temperature sensor monitors the battery temperature and adjusts (compensates) the charger’s output to prevent overcharging. This is ideal for batteries used in warmer climates or environments.
Short Circuit Protection
Projecta Intelli-Charge battery chargers feature short circuit protection, even in Power Supply mode.
Designed to prevent the output leads from sparking during charging from accidental reverse connection or short circuit, Projecta gives you peace of mind that the charger will remain safe at all times.
Shock Proof & Dust Proof
Constructed from extruded aluminium, Intelli-Charge battery chargers are shock-proof, dust-proof and have been rigorously vibration tested and passed both a military and caravan standard.
In addition, the circuit boards have been conformal coated to protect against moisture and dust and other elements so they are suitable for use in a range of locations.
| SPECIFICATIONS | ,|
| TYPE | ,,7 stage | ,
| INPUT | ,,240VAC, 50Hz | ,
| INPUT POWER | ,,1080W | ,
| OUTPUT VOLTAGE | ,,12V | ,
| OUTPUT CURRENT | ,,2,8,16,35A | ,
| MINIMUM START VOLTAGE | ,,2.5A | ,
| BACK DRAIN | ,,1mA | ,
| CHARGE CONTROL | ,|
| DESULPHATION | ,,High Frequency Pulse charge up to 11V | ,
| SOFT START | ,,Half the rated set current up to 12V | ,
| BULK | ,,Set current up to: ,,,14.1V (GEL) ,,,14.4V (AGM) ,,,14.7V (WET) ,,,14.7V (CALCIUM) | ,
| ABSORPTION | ,,Constant voltage until current drops to: ,,,2 Amp settings: 0.3A ,,, 8Amp setting: 1.2A ,,,16 Amp settings: 2.4A ,,,35 Amp settings: 5.25A | ,
| EQUALIZATION | ,,Contact current (2.0-3.75A) up to 16V then hold for 1 hour or 12 hour timeout | ,
| ANALYSIS | ,,Monitors battery for 90 sec | ,
| RECONDITION | ,,Contant current (0.3-5.25A) for 4 hours limited to: ,,,14.1V (GEL) ,,,14.4V (AGM) ,,,16V (WET) ,,,16V (CALCIUM) | ,
| FLOAT | ,,13.7V | ,
