Projecta 6/12/24V 21000Ma Workshop Batt

PROJECTA HDBC35 AUTOMATIC & MANUAL 6/12/24V 21A 2 STAGE WORKSHOP CAR TRUCK AND TRACTOR BATTERY CHARGER WITH 50A (AT 12V) ENGINE START

With plenty of power, engine start function and the ability to charge 6, 12 or 24V batteries, it is perfectly suited to mechanical workshops and auto electricians.

, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

FEATURES
	Automatic Charging
		When in automatic mode the charger will stop charging the battery when the battery is fully charged. You can leave the charger connected to the battery without risk of overcharging. Once the battery is full, the battery charger will automatically start to maintain the battery. The charger monitors the battery voltage and continues to top up the battery, keeping it fully charged and ready for use.
	Manual Charging
		The charger in this mode will continue to charge the battery until the timer finishes or is turned off and requires the user to monitor the charging battery. When used by experienced users it can deliver an equalization charge to balance the voltage in the battery’s cells.
	LED Indication
		OVERLOAD (Red LED Flashing):	The LED will flash when the transformer or the current regulators (SCR’s) have got too hot
		POWER ON (Red LED ON):	The LED comes on when connected to power and the charger is switched on
		POWER ON (Red LED Flashing):	Indicates that the battery clamps have been connected in reverse polarity
		Charging (Orange LED on):	The LED comes on indicating charging
		Fully charged (Green LED on):	The LED comes on when the battery is charged
		VOLT (Red LED ON):	The LED indicates that Voltage is being displayed
		AMP (Red LED ON):	The LED indicates that Amps or current is being displayed

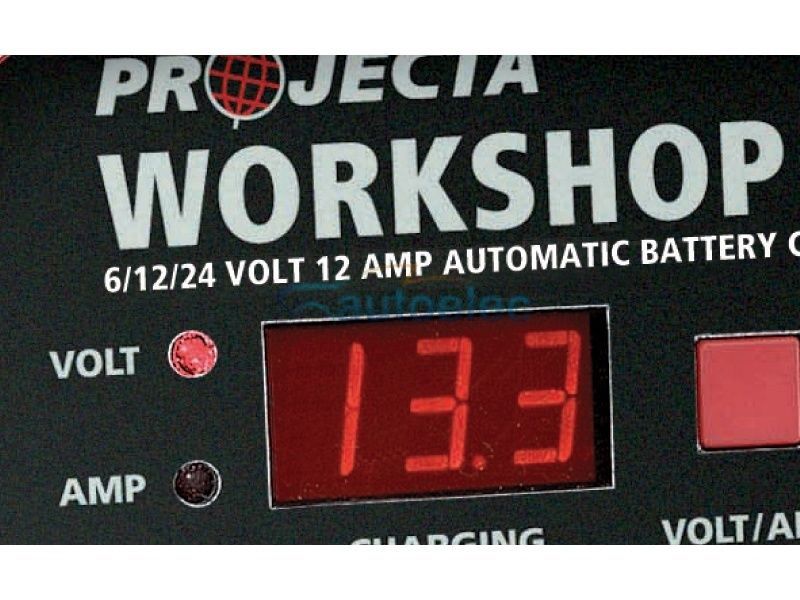

	LED Voltage/Amp Display
		The charger has a VOLT and AMP meter built in. When the charger is initially powered up the display will show voltage. When the VOLT / AMP button is pressed the Amps will be displayed, press the button again the display will go back to Volts. When Volts is displayed this indicates the state of charge of the battery, when Amps is displayed this indicates how much charge is being accepted by the battery.
	Override Button
		The battery charger measures the battery voltage at the clamps to determine if the battery is correctly connected. A reading above 3V will activate the battery charger. In some instances where the battery is extremely flat, it is possible to have correct connection and the battery to be below the 3V limit. In this instance check the battery leads to ensure they are connected correctly and press the OVERRIDE button to activate the battery charger.

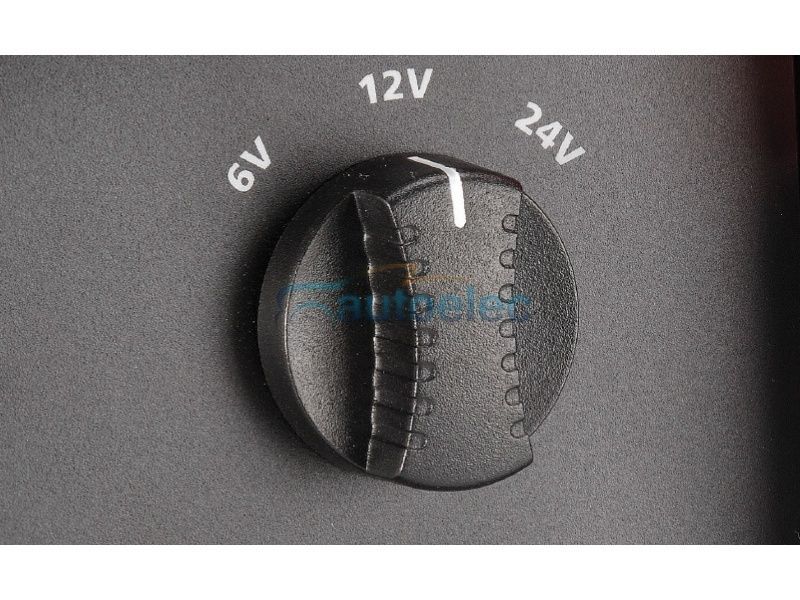

	Multi Voltage
		Suitable for charging 6V, 12V & 24V batteries.
	Engine Start
		If you need to get going and the battery is flat then the engine start will help you out. Connect the charger to the battery, set it to engine start mode for 5 minutes, then start your engine.
	0–14 Hour timer
		Automatically turns the battery charger off after a set time. The timer has 1 hour intervals with a maximum of 14 hours. This switch can also be set to permanently ON.
	Toroidal Transformer
		Using the latest technology in transformer design, toroidal transformers don’t use a solid iron core (like traditional transformers) making them lighter and more compact. They deliver more power than a traditional transformer charger of the same size.
	Protection features
		The charger is fitted with the following protection features:
		1. Reverse polarity protection – Where the battery leads are connected incorrectly the charger will flash the power LED and not charge the battery.
		2. Short circuit protection – There is no voltage at the leads until the battery clamps are connected to the battery.
		3. Overload protection – To prevent damage to the electronics the charger will switch off when overloaded, it will automatically reset when safe. The overload LED will flash in these times.
SPECIFICATIONS
	Type:		Manual and Automatic
	Input:		240VAC 50HZ
	Input power:		2.6A (636W)
	Output Voltage: (Nominal)		6VDC / 12VDC / 24VDC
	Output Current: (Continuous)
		6VDC	12A
		12VDC	12A
		26VDC	7.7A
	Suitable for charging		6V, 12V, 24V, lead acid batteries (motorbikes, small to large cars, trucks and tractors)
	Battery Range:
		CCA	550–2000
		MCA	700–2500
		Ah	65–220
	Minium Start Voltage:		0V
	Cut Out Voltage:
		6V	7.1V
		12V	14.2V
		24V	28.4V
	Cut In Voltage:
		6V	6.7V
		12V	13.4V
		24V	26.8V
	Output lead specifications:		6mm2 cable
	Size:		301x264x161mm
	Weight:		9.6kg
