Projecta 12V Volt Dc To Dc 45A Amp Battery Charger Agm Deep Cycle Solar Lv Idc45

PROJECTA 3 STAGE SWITCHMODE AUTOMATIC 12 VOLT to 12 VOLT ( DC to DC ) WITH SOLAR INPUT AND MPPT SOLAR CONTROLLER  SUITABLE FOR BOTH VRS SMART (LV) AND STANDARD ALTERNATORS MODEL P/N IDC45

*NOTE: We sell many DC to Dc chargers with 100% satisfaction but of late some vehicles now run a sophisticated charging system that "in laymans terms " the alternator ( also known as a "smart alternator" or "variable voltage alternator" ) charges at such a low voltage that it "fools" a standard type of DC to DC charger into thinking the vehicle is stationary therefore not charging the auxiliary battery .This mainly applies to some vehicles after 2010 THIS UNIT IS THE SOLUTION . This dc to dc charger senses this and compensates for whatever alternator technology it is connected to without the need for relays or bypass circuits etc.

​

Utilising the vehicle’s power, the IDC45 delivers a 3 stage charge to the auxiliary battery that steps up the voltage from as low as 9V - 32V ( Meaning this can be also be used on 24 volt vehicles to charge a 12 volt system ) input up to 15.4V output ( depending what battery technology is selected ). Ideal for charging deep cycle batteries commonly used in caravans, trucks, motor homes and 4WDs.

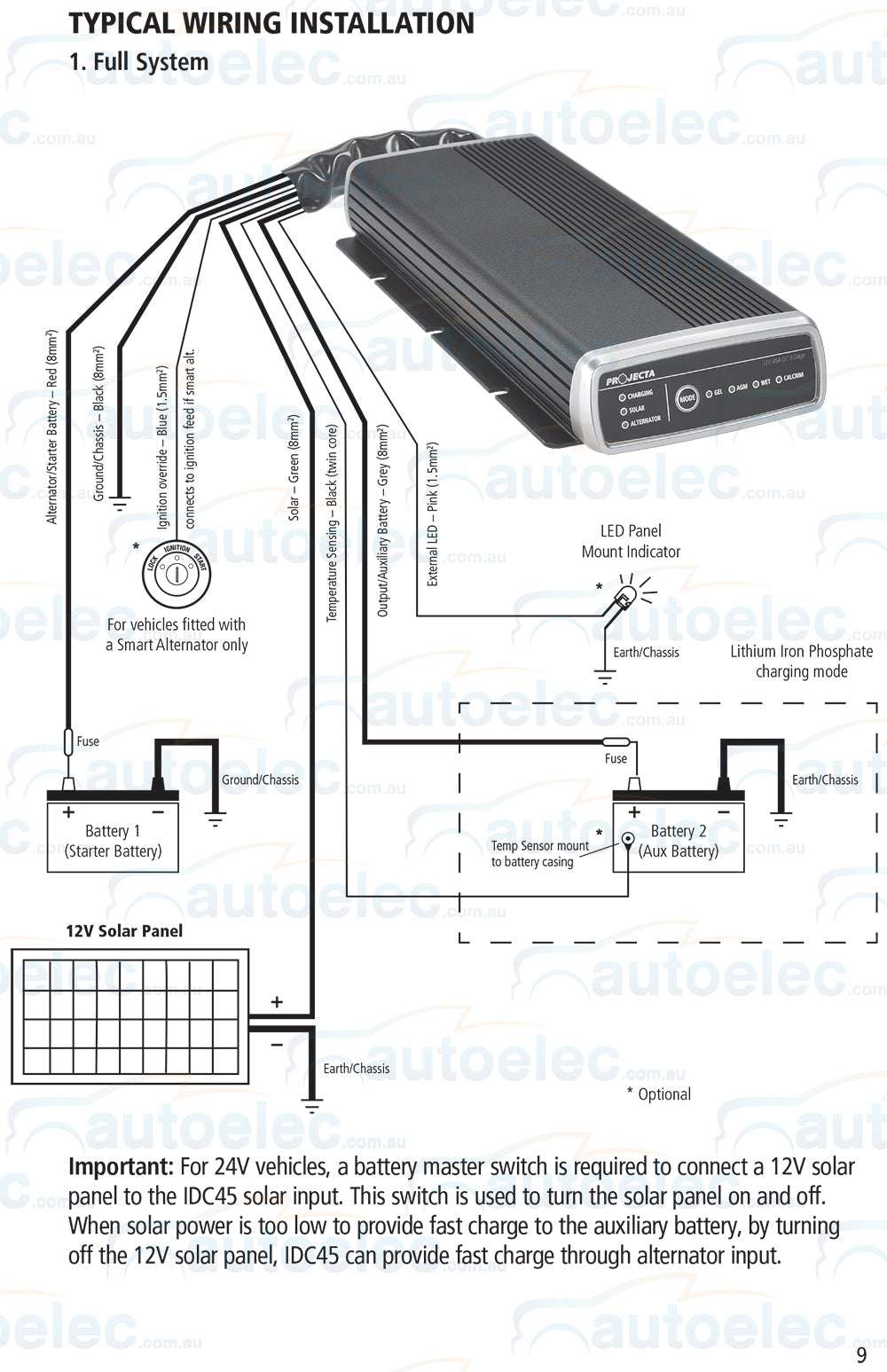

TO VIEW THE MANUAL

NOTE: The manual advises to use fuses to connect into this system for protection but CLICK to take you to a circuit breaker , this would be the best choice for connecting to this system because as well as being WATERPROOF, a circuit breaker ( compared to fuses ) has the advantage of if overloaded can be manually reset again on the spot , this compared to a fuse which when it blows needs to be replaced , let along the inconvenience of changing it if you have spare one.

​

, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, , , ,, ,, , , ,, ,, ,, ,

FEATURES
	SIMULTANEOUS SOLAR & ALTERNATOR CHARGING
		Maximise the power available , ensuring you get the most from your battery.
	DUAL CHARGING MODES
		Compatible with both conventional and smart ( variable voltage) alternator systems.
	MULTI CHEMISTRY
		Selectable charge for WET , AGM , GEL & CALCIUM technolgy batteries
	TEMPERATURE COMPENSATION
		Compensates for variable temperature conditions especially under bonnet installations.
