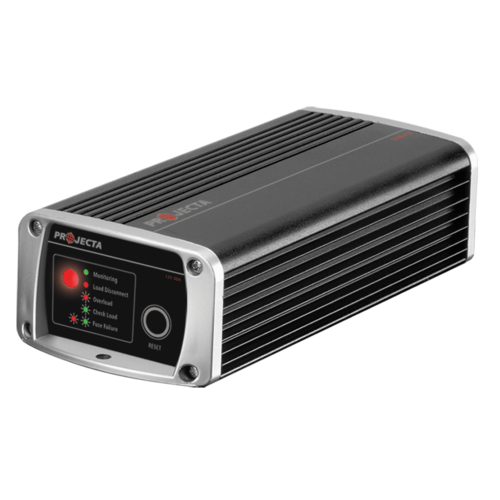

Projecta 12V Low Voltage Disconnect Cut Out Deep Cycle Agm Solar Caravan Lvd50
Projecta 12V Low Voltage Disconnect Cut Out Deep Cycle Agm Solar Caravan Lvd50 is backordered and will ship as soon as it is back in stock.
PROJECTA LVD50 LOW VOLTAGE CUT OUT 12 VOLT 30 AMP WITH 2 YEAR Manufacturer Warranty
12 volt appliances and equipment can continue to draw power from a battery even after the battery has been discharged below safe operating voltage levels. This deeply discharged state can cause damage to the battery and compromise the battery's life and performance.
The Projecta LVD50 is designed to monitor the battery voltage and disconnect the DC load when battery voltage falls below a present disconnect point , preventing further discharge and possible damage.Once the battery is recharged and the battery voltage is above the 13 volt mark the DC load will automatically be reconnected.

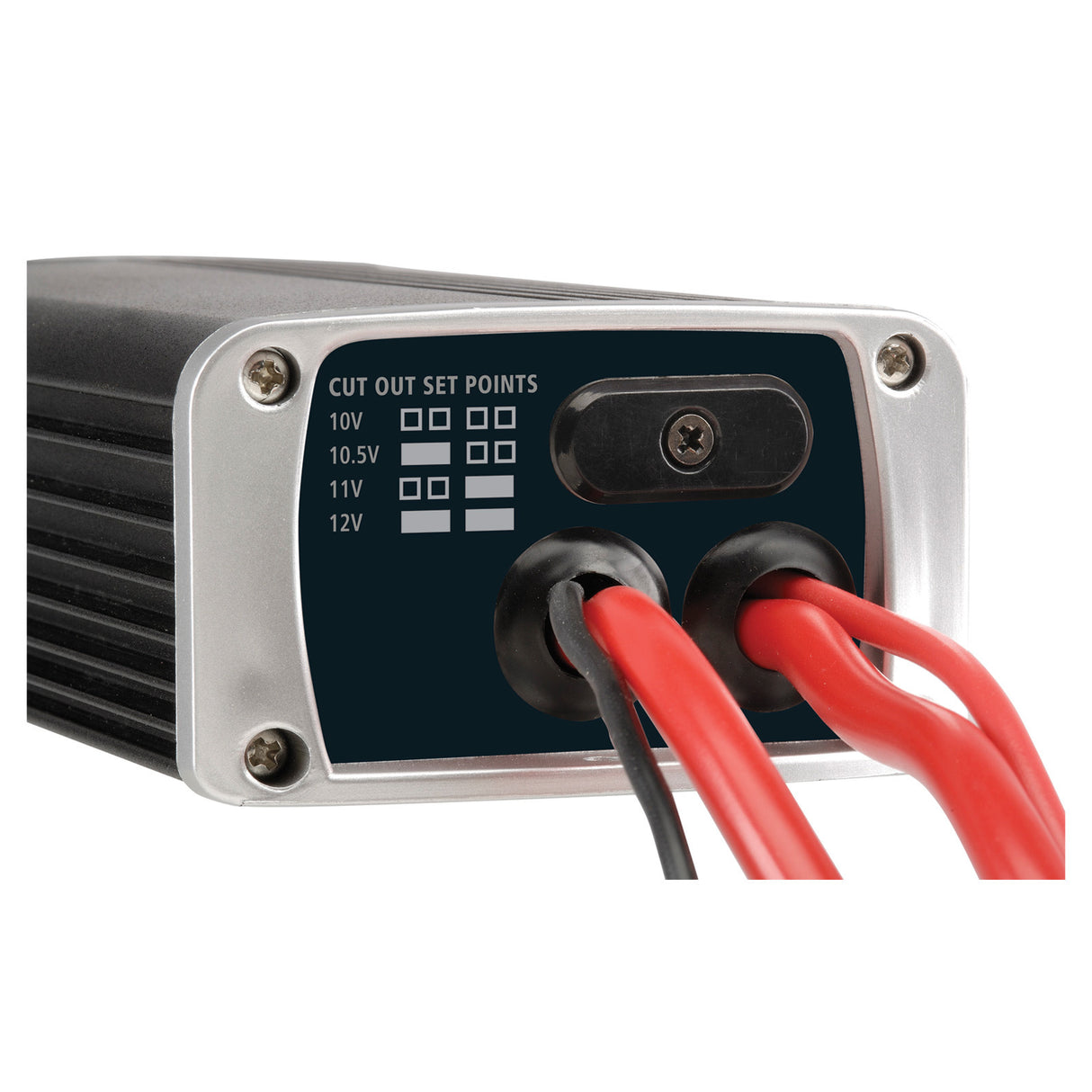

To best suit your application the LVD50 features 4 adjustable disconnect points allowing you to tailor the disconnect voltage level to best suit your application.
, ,, , , ,, ,, , , ,, , , ,, ,, , , ,, , , ,, ,, , , ,, ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,
| OVER DISCHARGE PROTECTION | ||
| Disconnects the DC load when the battery voltage reaches low levels | ||
| ADJUSTABLE VOLTAGE | ||
| Features 4 preset disconnection voltages | ||
| FULLY SEALED (IP65 RATED) | ||
| Fully sealed shock proof aluminium housing protects against water and dust ingress | ||
| SPECIFICATIONS | ||
| OUTPUT CURRENT | 50 AMPS | |
| INPUT VOLTAGE | 10 -16 VOLTS | |
| LOW VOLTAGE DISCONNECT SETPOINTS | 10V , 10.5V , 11V & 12V | |
| RECONNECT VOLTAGE | 13V | |
| DIMENSIONS | 180 x 65 x 38 | |
| WEIGHT | 500 GRAMS | |
