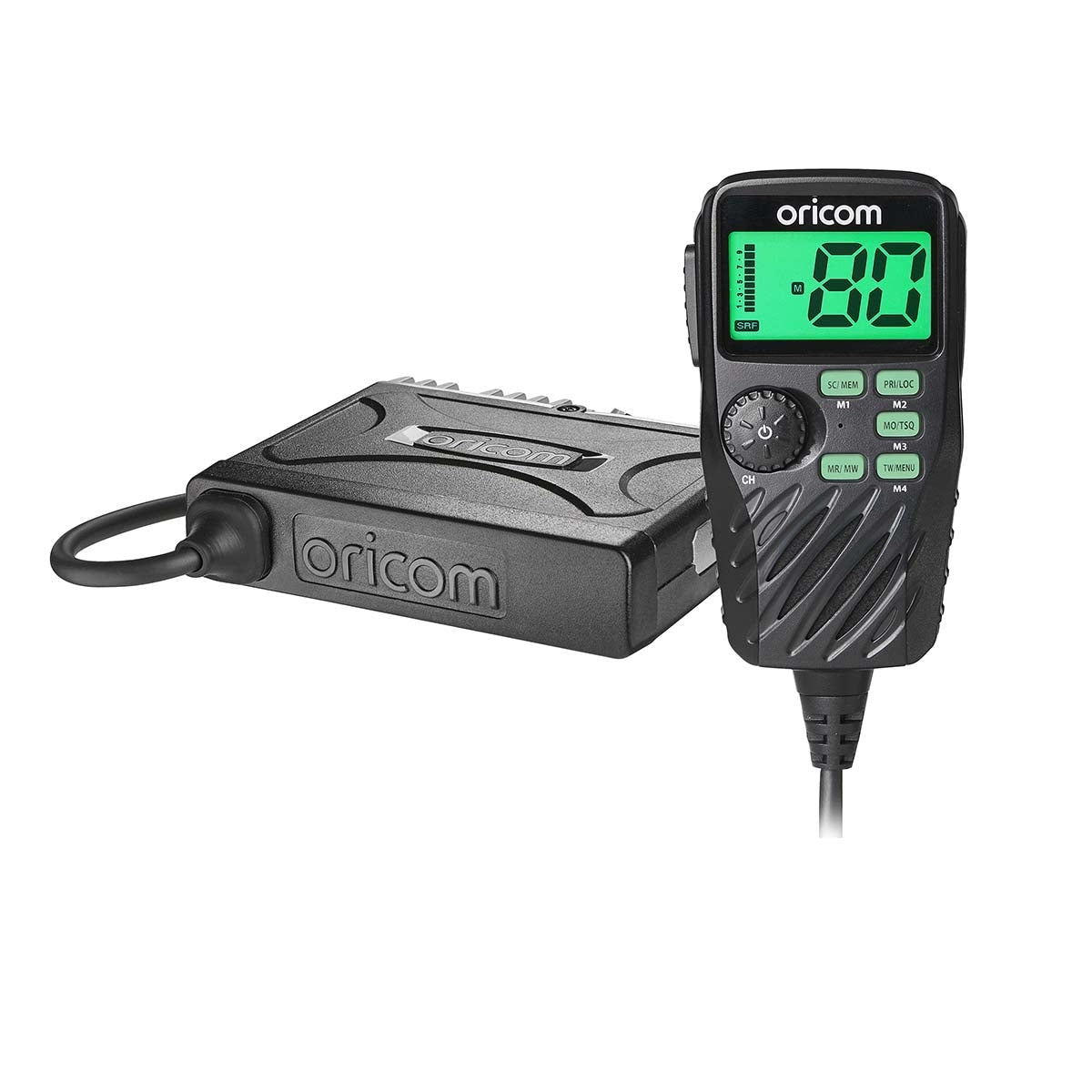

Oricom UHF390P 5W UHF CB Radio with Speaker Mic

The UHF390 removes the need for a head unit, with all of the radio’s controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume.

FEATURES
• 5 Watt (max TX power)

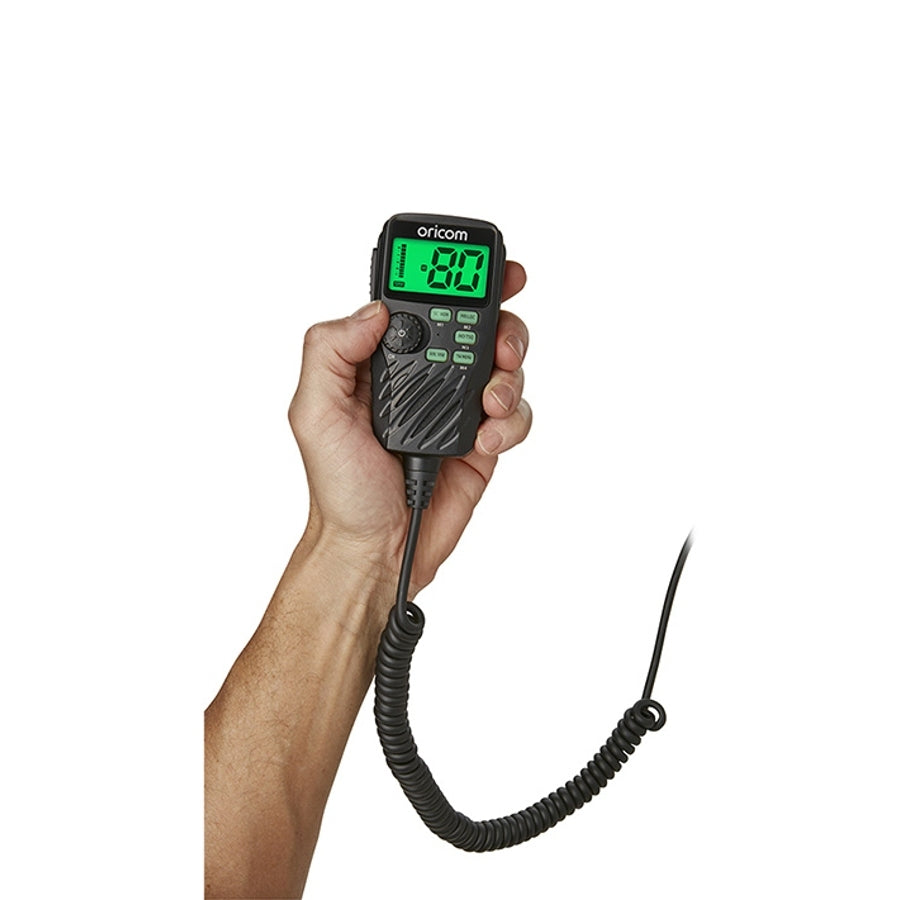

• Heavy duty controller speaker microphone
• Rugged micro size transceiver
• Large easy to read LCD display
• Automatic Level Control (ALC) for consistant audio levels
• 38 CTCSS and 104 DCS codes
• Duplex (range extender)
• Open/Priority scan
• Priority channel
• 2 Microphone extension cables, one for use with
pass through connector (not supplied)
• Designed for Australian conditions. Made in Korea

PACK INCLUDES
• 1 x UHF CB radio
• 1 x Heavy duty controller speaker microphone
• 1 x Microphone mounting bracket
• 1 x Transceiver mounting bracket
• 1 x Microphone extension cable
• 1 x Microphone extension cable (pass through compatible)
• 1 x Mounting hardware

TECHINICAL SPECIFICATIONS
Compliance AS/NZS 4365:2011
Frequency Range TX/RX 476.425 - 477.4125 MHz
Number of TX/RX Channels 80 UHF CB (75 Voice channels)
Channel Spacing TX/RX 12.5KHz
Operating modes Simplex, Repeater TX offset (+750kHz)
Scanning Speed 130 msec per channel
Antenna Impedance 50 Ohms
Operating Volts nominal 13.8VDC
Operating Volts Range 10 to 15 VDC
Over Voltage Protection voltage regulator
Over Current Protection 2 AMP fuse
Reverse Polarity Protection Shunt diode
Frequency stability +/- 2.5ppm


RECEIVER
Circuit Type Direct conversion by single DSP chip
Intermediate Frequencies IF = 137KHz
Maximum useable sensitivity Less than -122dBm at 12dB SINAD
Audio output power 3 Watts Maximum
RX Audio de-emphasis -6dB/octave 300Hz to 3kHz


TRANSMITTER
RF Output Power Nominal 5 watts
Modulation F3E(FM)
Maximum deviation 2.5KHz
Spurious Emissions < -70 dBc
TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz
Current consumption during TX 1.5 Amps with 50 Ohm antenna
termination


MECHANICAL
Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm
