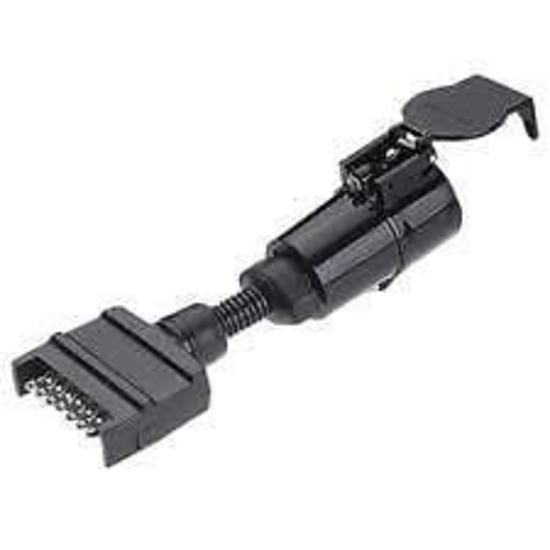

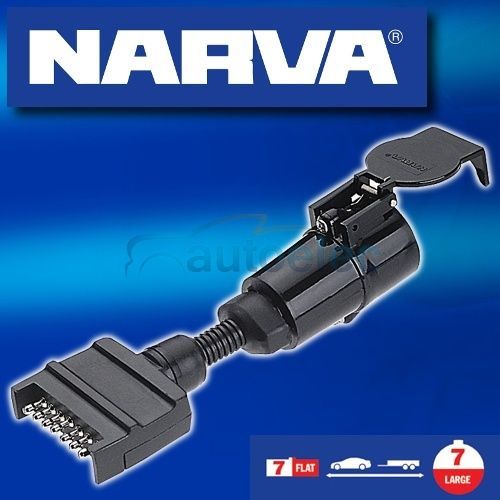

Narva Car Trailer Adapter 7 Pin Flat Male Plug To 7 Round Female Socket 82245
Narva Car Trailer Adapter 7 Pin Flat Male Plug To 7 Round Female Socket 82245 is backordered and will ship as soon as it is back in stock.
1 x NARVA 7 PIN TRAILER ADAPTER MODEL P/N 82245BL
7 PIN FLAT SOCKET ON THE CAR , TRUCK , 4X4 ETC TO 7 PIN ROUND PLUG ON THE TRAILER , CARAVAN , BOAT ETC
This is the standard 7 pin wired plug ( see below ) required to connect your vehicle to 7 Pin Round wired Trailer sockets ( see below )
The Amp rating per pole is 15A at 12V.
WIRING CONFIGURATION
1 left hand turn - yellow
2 reverse - black
3 earth - white
4 right hand turn - green
5 electric brakes - blue
6 stop - red
7 tail, clearance, side markers - brown
NOTE: ON OCCASION WE WILL SUPPLY THESE AS 82245BL , THE ONLY DIFFERENCE IS THAT THE "BL" STANDS FOR BLISTER PACKAGING , OTHERWISE THERE IS NO OTHER DIFFERENCE THAN THIS
REMEMBER WE OFFER SECURED SHIPPING WITH TRACKING ON THIS ITEM
