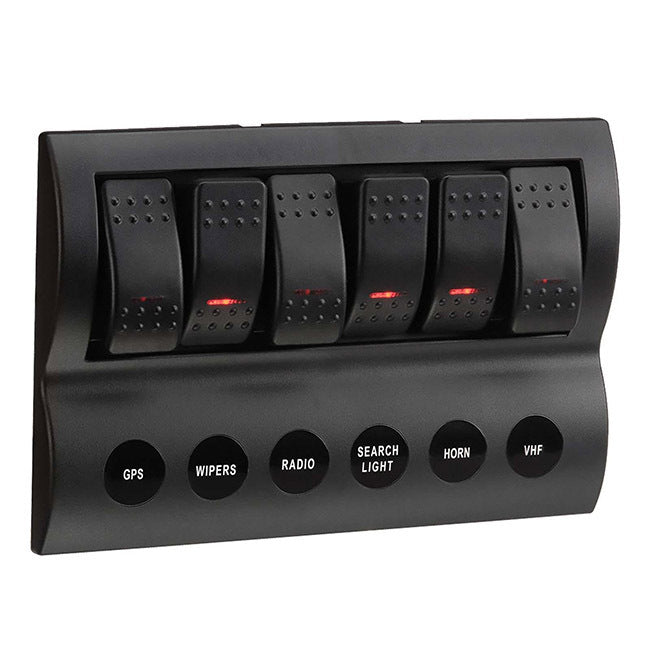

Narva 6x Switch Switches Panel Fused Caravan Marine Boat Rocker Led 12V 63193

1 x GENUINE NARVA 6  SWITCH , FUSED , SWITCH PANEL, WITH INDIVIDUAL INDICATOR LIGHTS AND CUSTOMISED ID PANEL FOR EACH SWITCH  MODEL P/N 63193

IDEAL for wiring  that boat , caravan ,camper , motorhome etc to switch all those extra items from the one location , these sealed switch panels are prewired and feature concealed electrical protection.Choose from either blade fuse or manual reset circuit breakers ( depending on model ) , both easily serviced via the removable fascia. Select from 4 , 6 or 8 way panels ( depending on model ) .Each panel is supplied with an RV sticker set with popular RV AND MARINE SYMBOLS TO CUSTOMISE YOUR PANEL. Switch panels can be mounted horizontally or vertically to best suit the mounting application. All L.E.D. Rocker switch panels are suitable for either 12 volt or 24 volt application.

SPECIFICATIONS
Switch detail: SPST, 'On' illumination
Amperage rating 20A at 12V, 10A at 24V
Mounting opening: 157 x 93mm
Overall Panel Dimensions: 183 x 120mm

FEATURES
Includes 6 Off/On switches with red 'On' illumination.
Includes 46 piece symbol set for RV and Marine applications included.
Supplied with fuses accessible from front cover by removing clip-off covers (see pics)
Individual fuses for each switch
Systems – on red LED on each switch
Supplied with label sheet for identifying each switch (see pics)
