Narva 54435 Fuse Block Holder Box Caravan Marine Dual Battery Volt 10 Way 25 Amp
Narva 54435 Fuse Block Holder Box Caravan Marine Dual Battery Volt 10 Way 25 Amp is backordered and will ship as soon as it is back in stock.

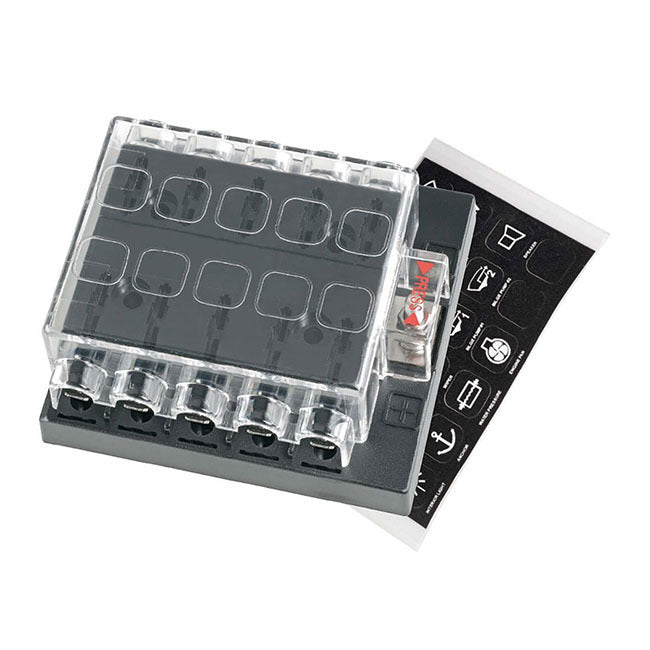

GENUINE NARVA 10 WAY STANDARD ATS ( REGULAR SIZE ) BLADE / WEDGE FUSE HOLDER WITH REMOVABLE SEE THROUGH CLIP ON COVER COVER THAT SECURELY FITS INCLUDING 22 IDENTIFICATION STICKERS WITH REFERENCE TO THE MOST COMMONLY CONNECTED ACCESSORIES .MODEL 54435
IDEAL for wiring auxiliary power to and then being able to take off 10 fused separate circuits .One power in , 10 fused power out.
FEATURES
- 10 fuse outlets , 24 self adhesive identification labels ( see pictures )
- 150 amps maximum per fuse block
- 25 amps maximum per individual fuse
- Common positive
- Accepts ATC fast acting standard blade fuses
- Clear cover made from polycarbonate
- Base made from reinforced polycarbonate
SPECIFICATIONS
- Max Amps per Circuit:25 AMPS
- Max Amps per Block:150 AMPS
- Max Voltage:32 VOLTS
- Recommended Wire Size:Positive & Negative Feed 14-25mm
- Output Connections : Standard Male Blade Connection
- Max Ambient Temperature:0-50 °C

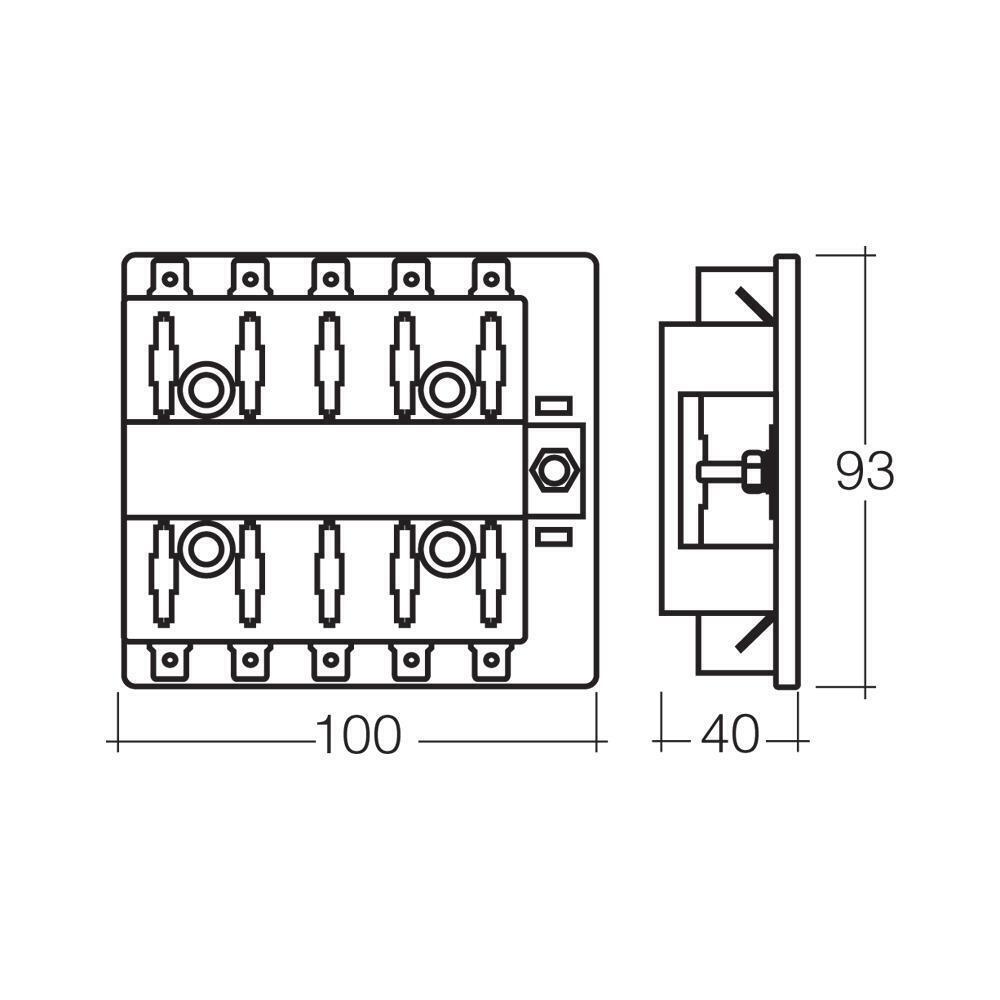

- BLOCK DIMENSIONS = 100mm wide x 93mm high x 40 mm deep with cover fitted
