Narva 54431 Fuse Block Holder Box Caravan Marine Dual Battery Volt 6 Way 25 Amp
Narva 54431 Fuse Block Holder Box Caravan Marine Dual Battery Volt 6 Way 25 Amp is backordered and will ship as soon as it is back in stock.

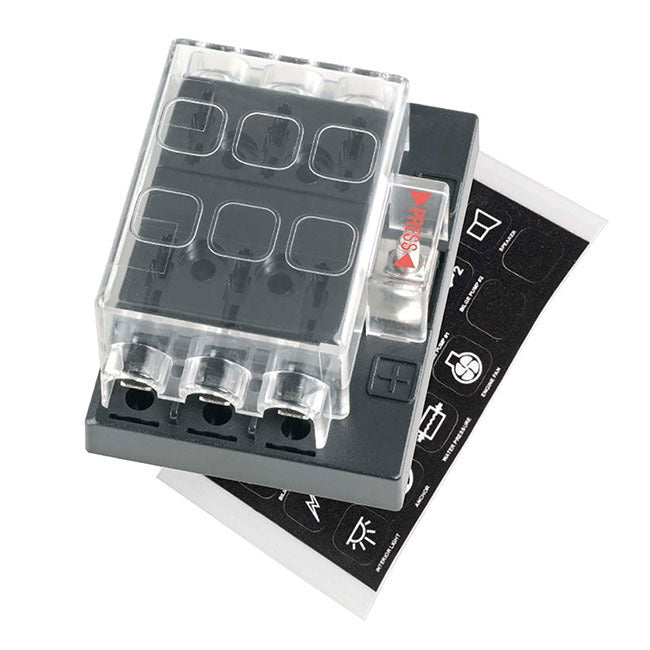

GENUINE NARVA 6 WAY STANDARD ATS ( REGULAR SIZE ) BLADE / WEDGE FUSE HOLDER WITH REMOVABLE SEE THROUGH CLIP ON COVER COVER THAT SECURELY FITS INCLUDING 22 IDENTIFICATION STICKERS WITH REFERENCE TO THE MOST COMMONLY CONNECTED ACCESSORIES MODEL# 54431
IDEAL for wiring auxiliary power to and then being able to take off 6 fused separate circuits .One power in , 6 fused power out.
FEATURES

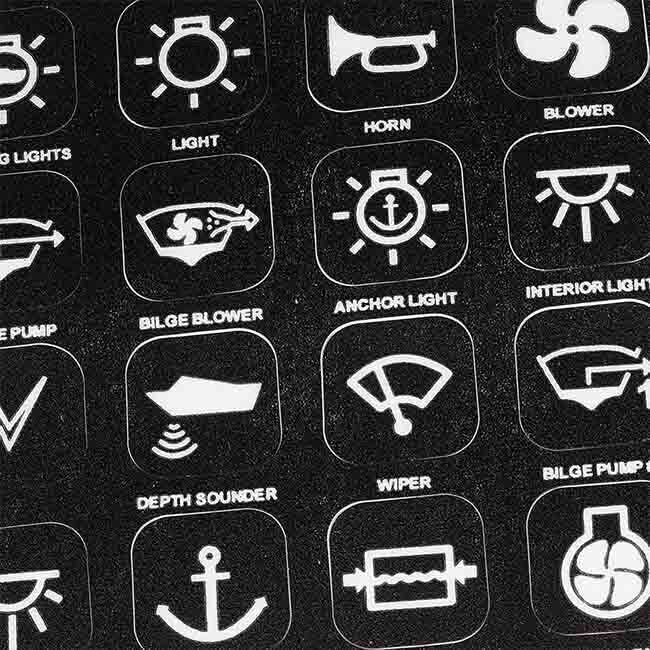

6 fuse outlets , 24 self adhesive identification labels ( see pictures )
150 amps maximum per fuse block
25 amps maximum per individual fuse
Common positive
Accepts ATC fast acting standard blade fuses
Clear cover made from polycarbonate
Base made from reinforced polycarbonate
SPECIFICATIONS
Max Amps per Circuit:25 AMPS
Max Amps per Block:150 AMPS
Max Voltage:32 VOLTS
Recommended Wire Size:Positive & Negative Feed 14-25mm
Output Connections : Standard Male Blade Connection
Max Ambient Temperature:0-50 °C

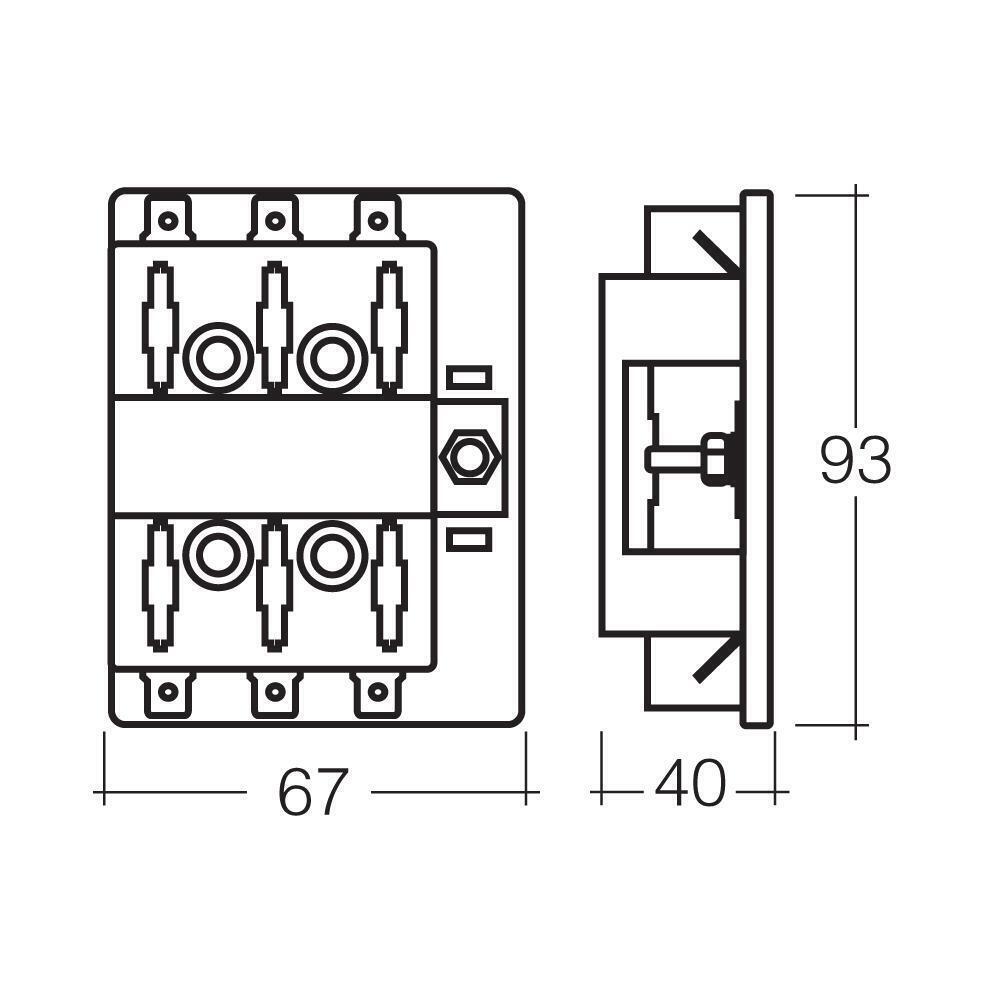

BLOCK DIMENSIONS = 67mm wide x 93mm high x 40 mm deep with cover fitted
