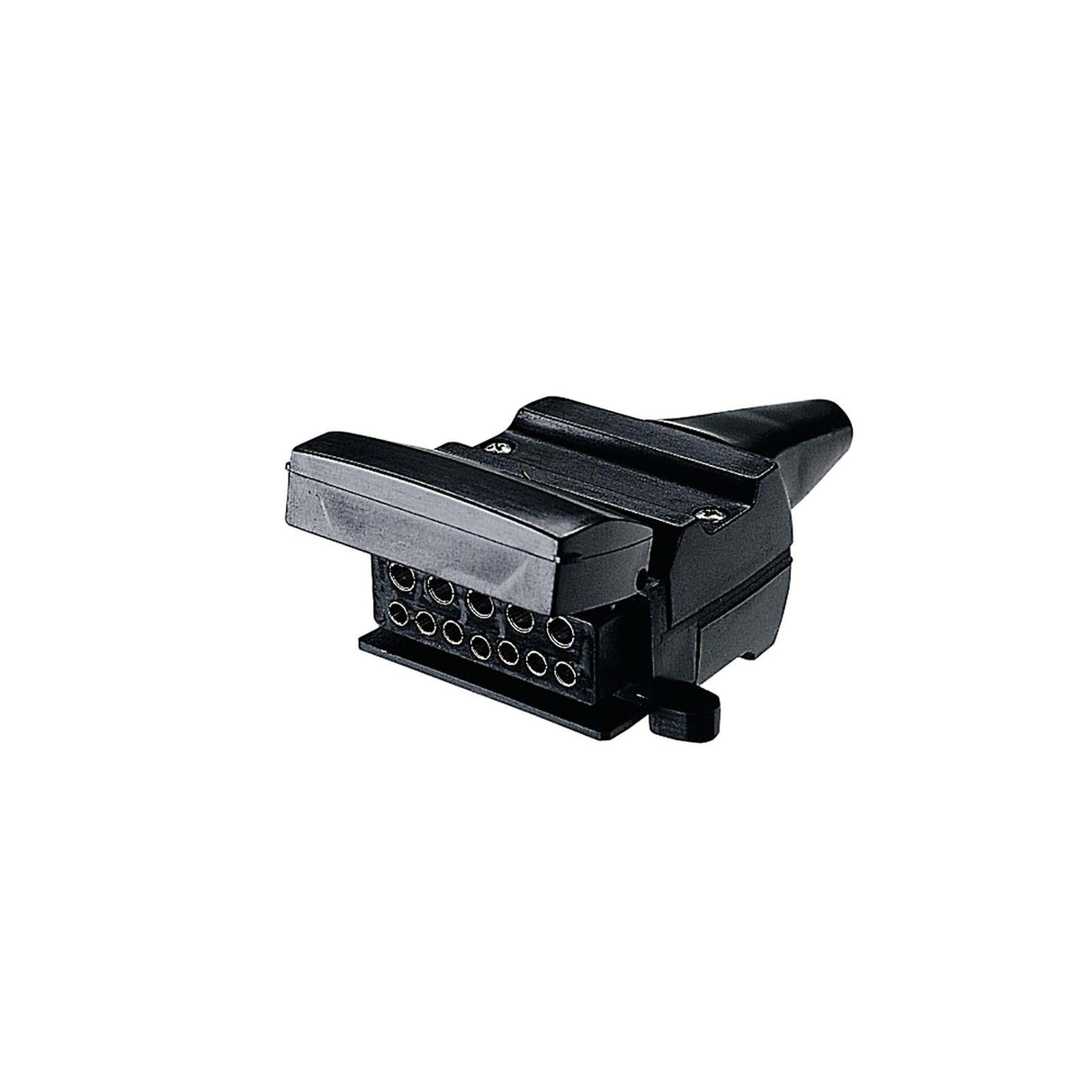

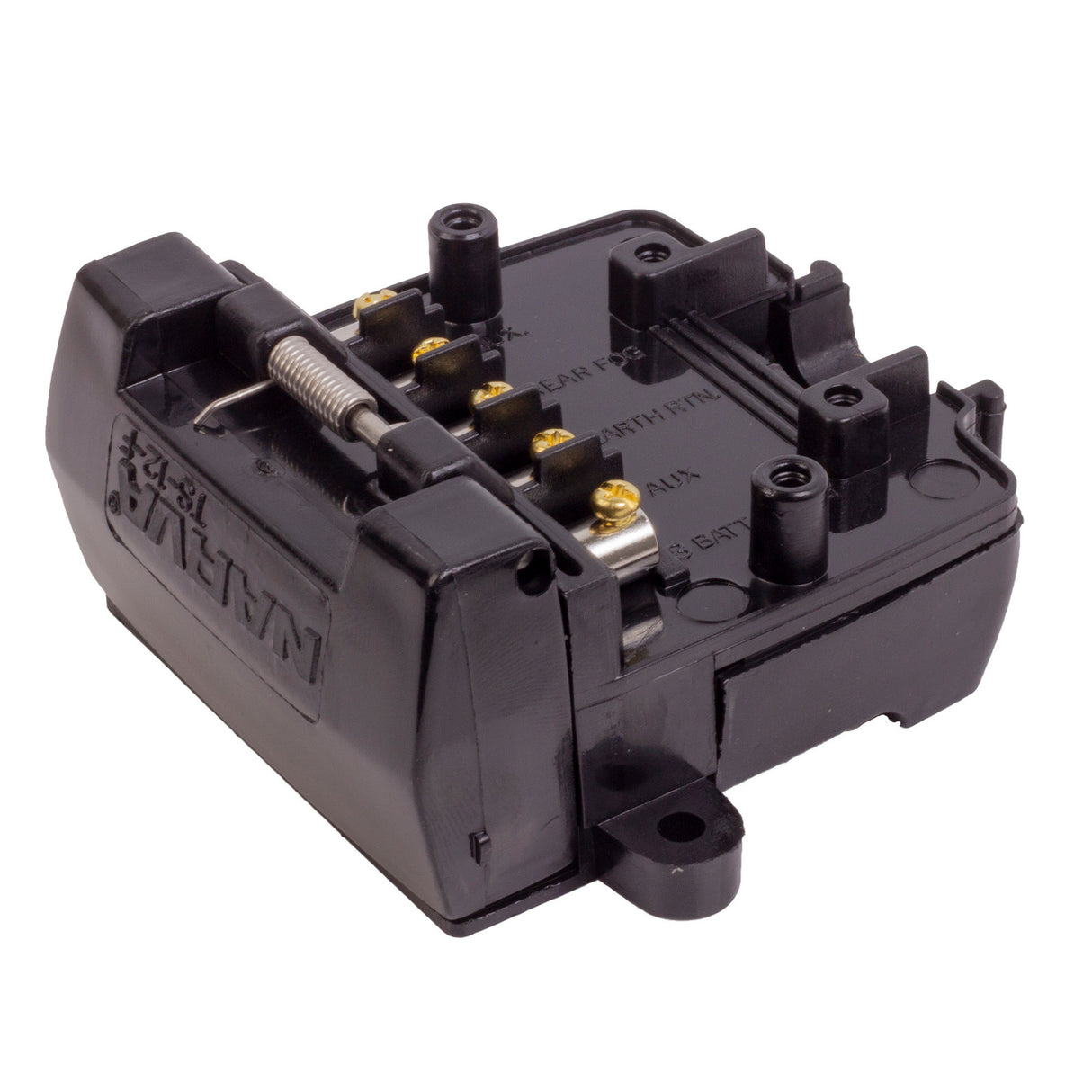

Narva 12 Pin Flat Female Trailer Socket Connector

NARVA 12 PIN VEHICLE SOCKET MODEL P/N 82072BL

This is the STANDARD VERSION of the 12 pin socket TO connect your vehicle to most caravans , camper trailers and some boat trailers. This is ALSO COMPATIBLE with a standard 7 PIN FLAT PLUG TOO , meaning you don't require 2 sockets to be installed on your vehicle.

WIRING CONFIGURATION
1  left hand turn -  yellow
2  reverse  -  black
3  earth  -  white
4  right hand turn  -   green
5  electric brakes  -  blue
6  stop  -  red
7  tail, clearance, side markers  -  brown
8  battery supply  -  orange
9  auxiliaries  -  pink
10  earth  -  white
11  rear fog lamp  -   grey
12  auxiliaries  -  violet
