Blue Sea On Off Selector Select Master Disconnect Marine 12 24 Kill Switch 6006

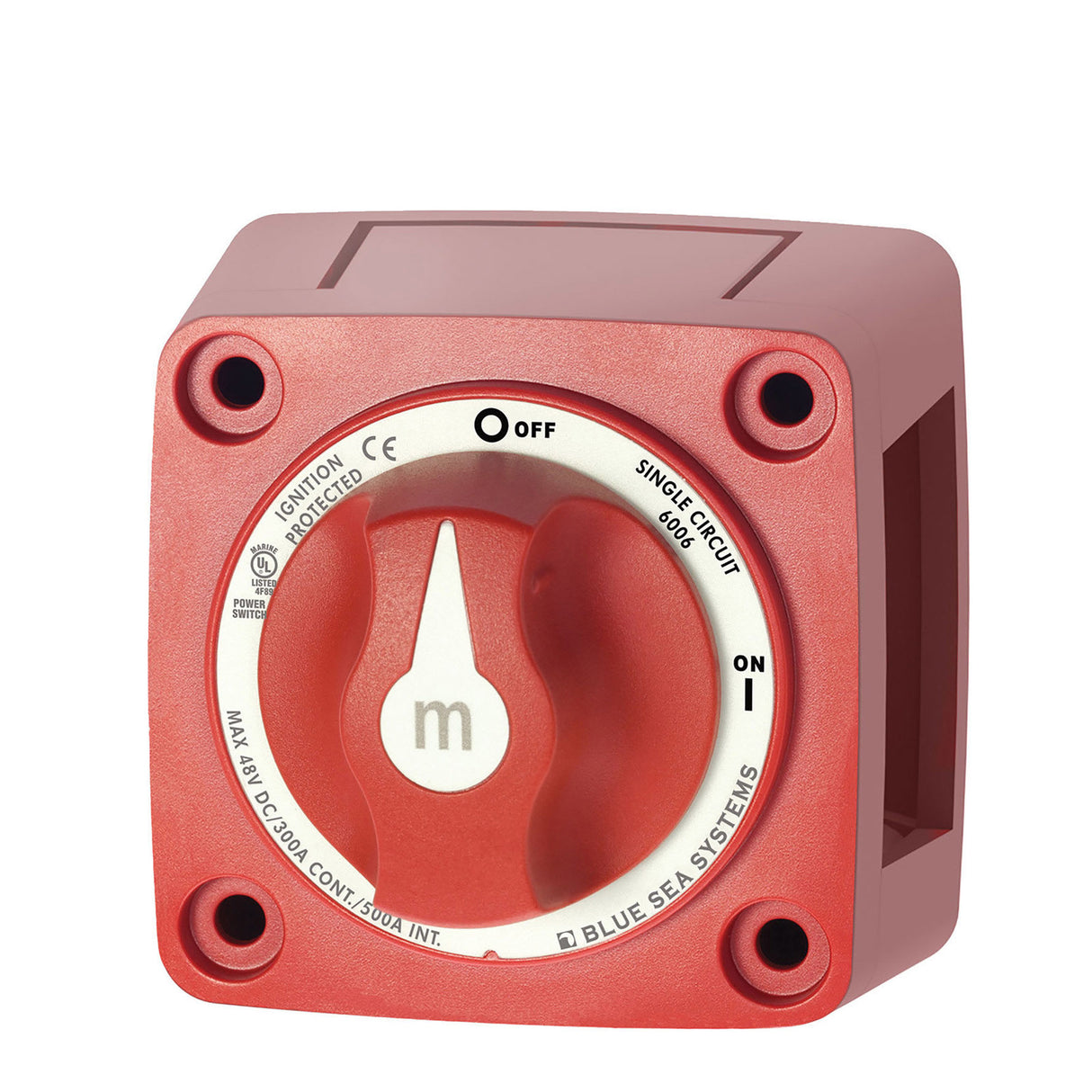

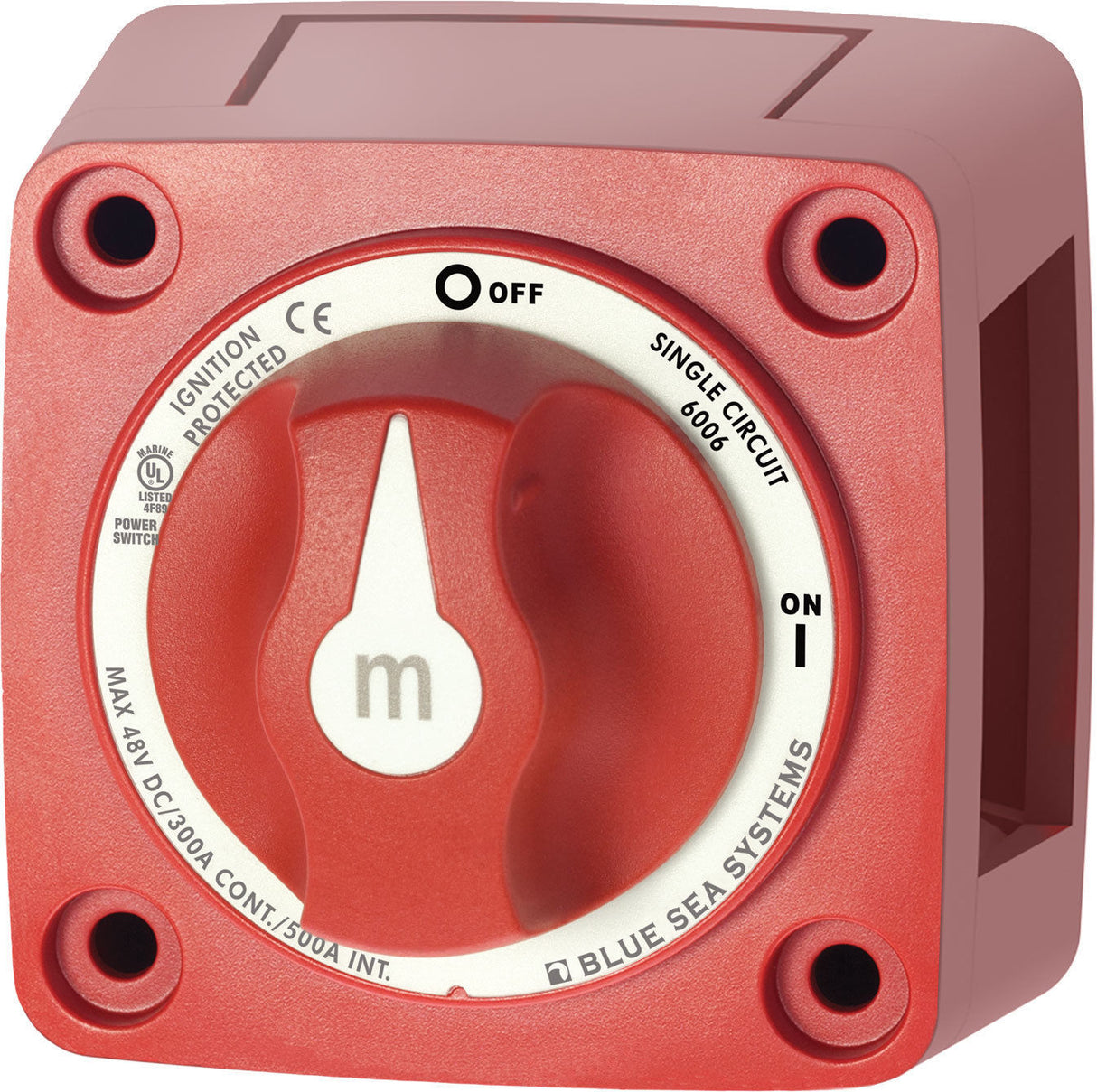

BLUE SEA SINGLE CIRCUIT ON OFF  775 AMPS ( peak 60 sec ) , 300 AMP (continuous) SURFACE MOUNT IN LINE BATTERY ISOLATOR  MODEL 6006

NOTE: Screws are not supplied with this switch.

The mini battery switch that outperforms switches twice its size.

Blue Sea Systems' new m-Series Battery Switch, available in four practical models, is a great choice for most boaters. Its "mini" size, flexible mounting options, and current-carrying capacity make this battery switch a wise choice. The m-Series switch is versatile enough to meet just about any battery switch application for small and medium-size boats. It is very compact, measuring less than 3" by 3" (7.6cm X 7.6cm), making it ideal for installations where there are size and space constraints. In spite of its size, its current-carrying capacity exceeds many standard-size switches.

Single Circuit ON, OFF-Disconnects a single battery bank in emergencies, or when the vehicle is not in use.


Current and Voltage Ratings

The mini size of Blue Sea Systems' m-Series battery switches is deceiving. These switches are capable of 300 Amperes continuous rating and 500/450 Amperes intermittent rating. The Single Circuit and Selector models are rated at 48V.

Case Material

The m-Series Battery Switch case is manufactured using two glass-reinforced plastic variations with properties specific to their application in the switch:

• The front case, knob, snap-on rear cover plate, and removable isolator covers are made from glass-reinforced polycarbonate, a highly impact resistant material.
• The switch back plate to which the terminal studs are connected is polybutylene terephthalate (PBT) polymer. PBT is a high heat-rating material not affected by the heat that can be generated by the terminals when operating with high current.

Terminal Stud and Electrical Contact Material

The m-Series battery switch is manufactured with copper contacts and tin-plated copper terminal studs. The bare copper contacts provide the best conductivity and therefore the least amount of heating. The 3/8" (M10) tin-plated copper studs provide maximum conductivity and corrosion resistance. The 7/8" (22.2mm) long stud length accepts multiple-cable terminals.

On the Dual Circuit™ and Selector models, the terminal studs are cold pressed into the copper contacts; On the Single Circuit model, the heads of the studs serve as the electrical contacts. Both techniques provide a very strong mechanical and ideal electrical connection. This technique is better than using a nut to fasten the stud to the bus or backplate-a practice used by most battery switches on the market today. A nut may loosen with vibration or during installation of battery cables. When the one-piece stud is pressed into place, it remains tightly fastened thereby eliminating the risk of overheating and switch failure.

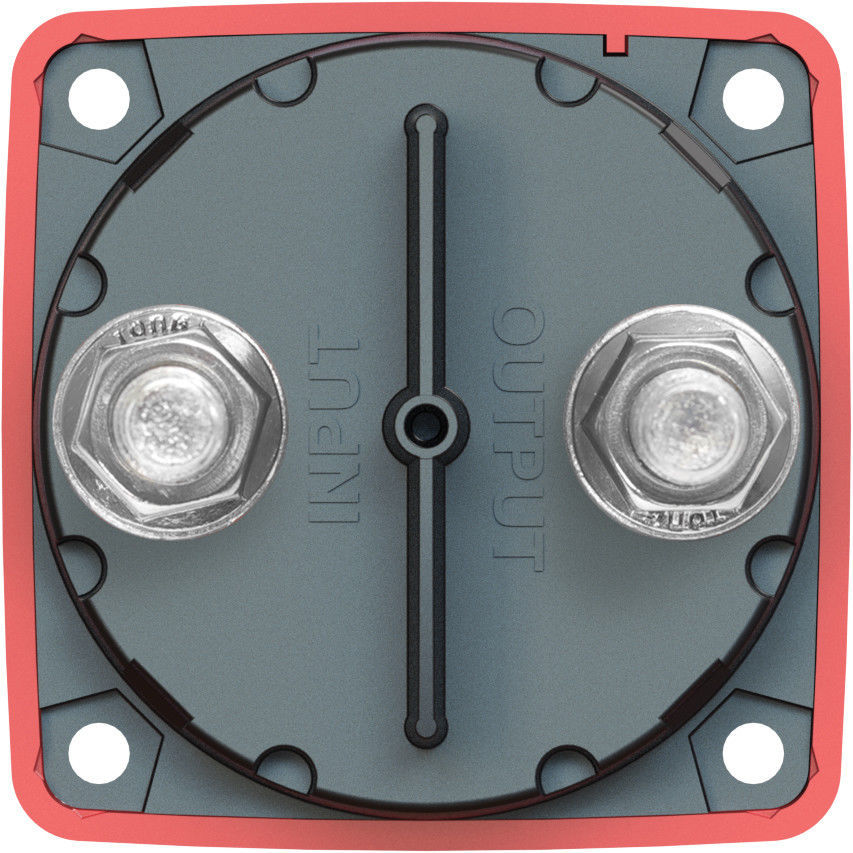

The rear cover plate can be attached in all of the mounting configurations. The removable rear cover plate and side isolator covers protect terminal studs. Remove only the side isolator cover required for you to make connections.

The knob can be removed when the switch is in the off position to provide lockout for servicing. This prevents power from being turned on while the electrical system is being serviced. The knob is positively retained in other positions.

Additional Features

In addition to its compact size, multiple models, and current-carrying capacity, the m-Series Battery Switch also has additional features that make it a desirable choice:

• Ignition protected-Safe for installation aboard gasoline-powered engines
• Accepts up to 4/0 AWG battery cables



FEATURES

• Make before break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats

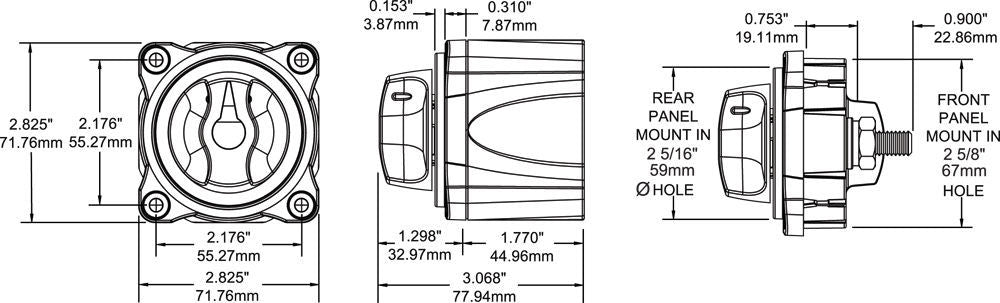

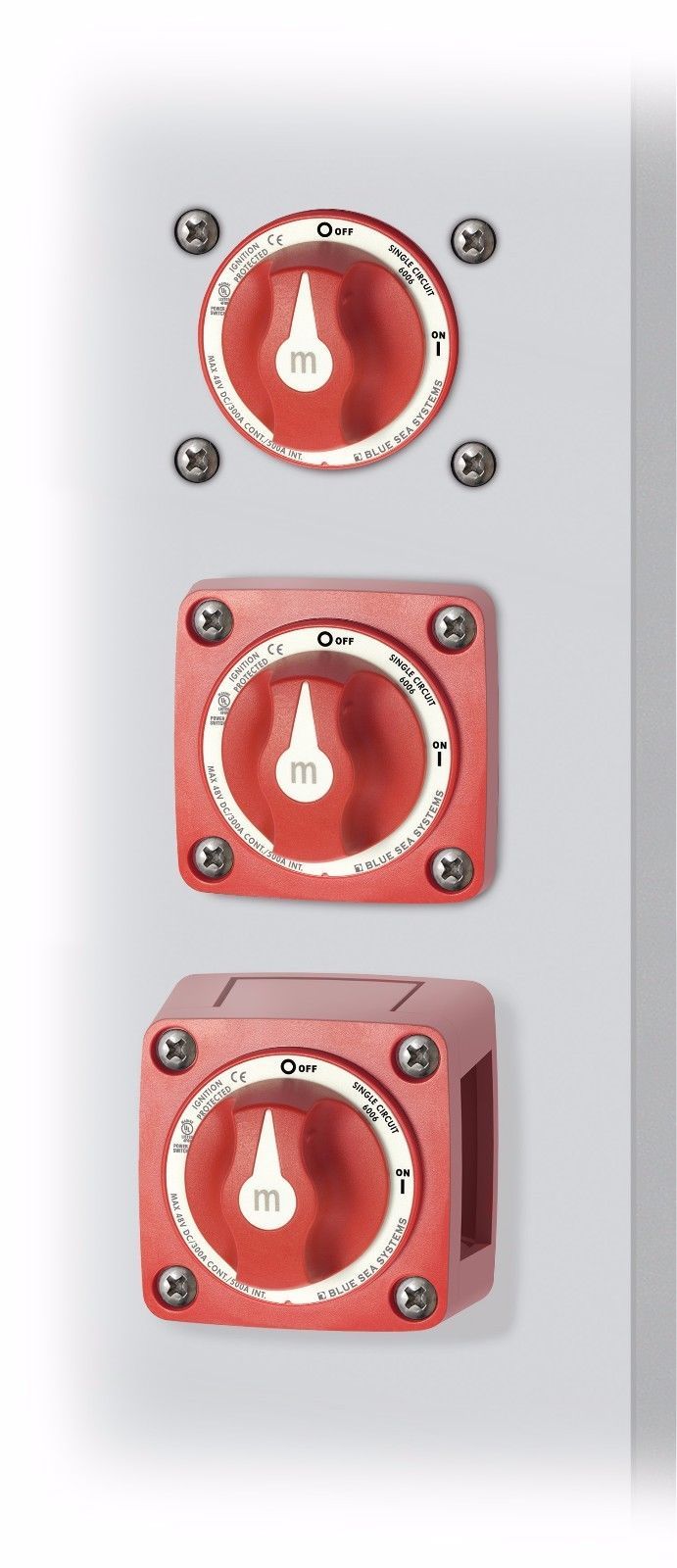

• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification



, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

SPECIFICATIONS
	Switch Type	Single Circuit ON-OFF
	Color	Red
	Switch Positions	2
	Battery Combine	No
	Alternator Field Disconnect	No
	Maximum Voltage	48V DC
	Continuous Rating	300A
	Intermittent Rating	500A (5 min)
	Cranking Rating 10 sec	1500A
	Cranking Rating 1 min	775A
	Battery Inputs	1
	Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
	Cable Size to Meet Ratings	4/0 AWG (120mm²)
	Mounting Holes	Accept #10 Screw
	Terminal Stud Size	3/8"-16 (M10)
	Terminal Stud Torque	120 in-lb (13.56 Nm)
	Weight	0.65lb (0.29 kg)
