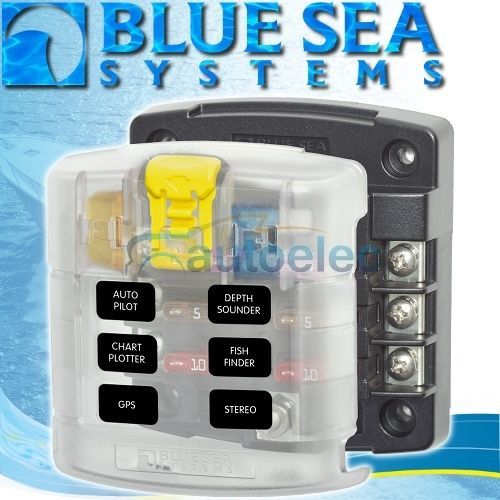

Blue Sea 5028 Fuse Block Box Holder Marine Boat Battery 12 Volt 12V 6 Way New

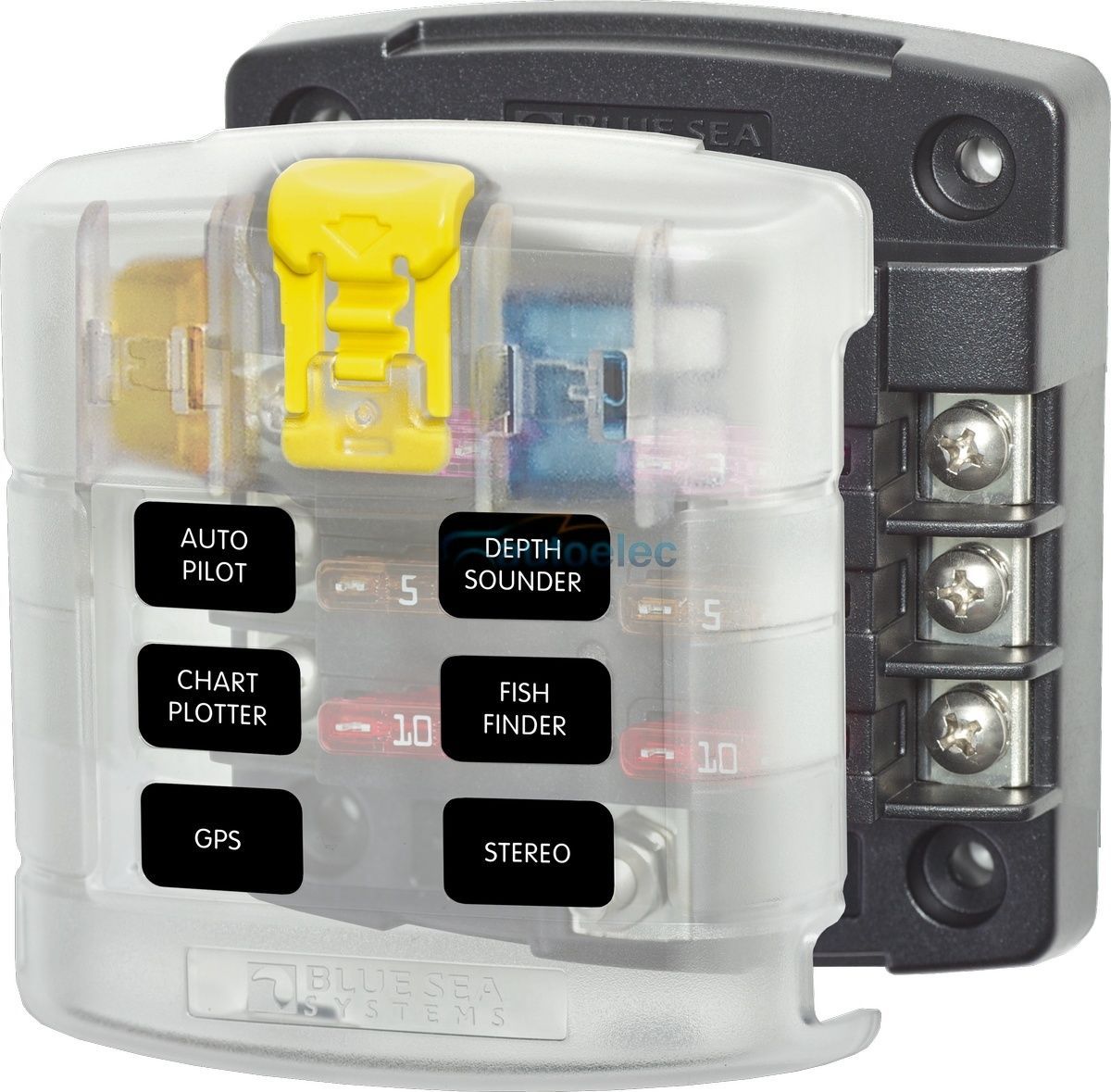

BLUE SEA 6 WAY STANDARD ( REGULAR SIZE ) BLADE / WEDGE FUSE HOLDER / BOX WITH REMOVABLE SEE THROUGH CLIP ON COVER * COVER THAT SECURELY FITS WITH BUTTON RELEASE! P/N 5028

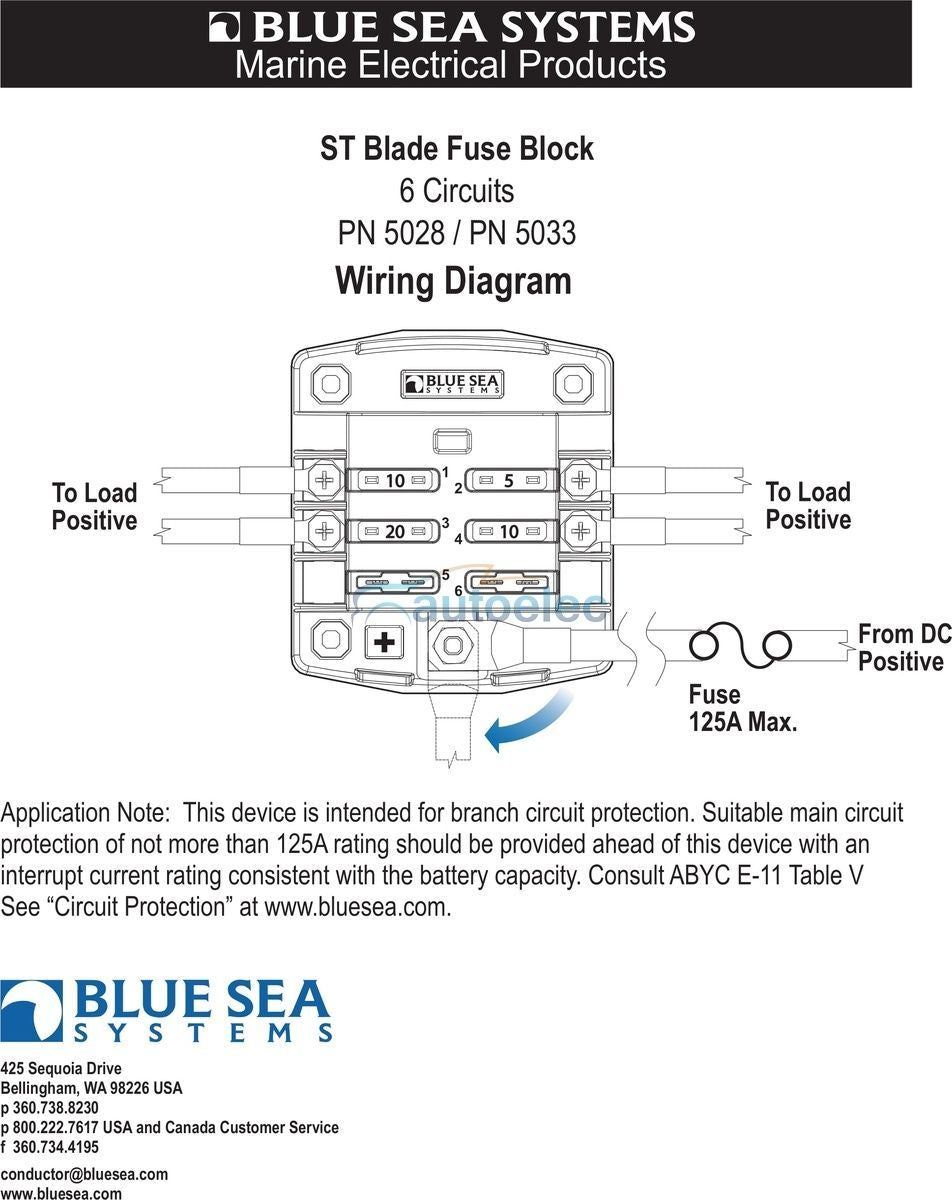

POSITIVE BUS TERMINAL (one power in to feed all 6 fuse points)

IDEAL for wiring auxiliary power to and then being able to take off 6 fused separate circuits. MODEL 5028B

*NOTE DECALS SHOWING VARIOUS WORDING FOR CIRCUITS ON THE FRONT COVER AND FUSES IN THE PICTURE ARE NOT INCLUDED

, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, ,, , , ,, , , ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

FEATURES
	6 fuse outlets
	100 amps maximum per fuse block
	30 amps maximum per individual fuse
	Provision for holding 2 spare fuses
	Common positive
	Accepts ATO and ATC fast acting standard or mini blade fuses
	Clear cover made from polycarbonate
	Cover satisfies ABYC/USCG requirements for insulation
	Base made from reinforced polycarbonate
SPECIFICATIONS
	Max Amps per Circuit	30 AMPS
	Max Amps per Block	100 AMPS
	Max Voltage	32 VOLTS
	Recommended Wire Size	Positive Feed 14-25mm
	Recommended Torque	#8 Screw 18 in-lb #10 Stud 24 in-lb
	Max Ambient Temperature	0-50°C

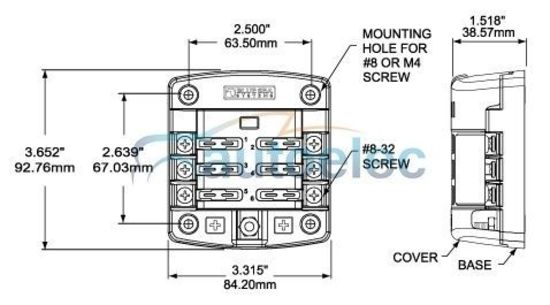

	BLOCK DIMENSIONS	92.76mm x 84.2m  x 38.6 mm

"
