Projecta Sc320 3 Stage 12V & 24V 20Amp Solar Charge Regulator Controller Lvd

PROJECTA SOLAR CHARGE CONTROLLER SC320

3 STAGE CHARGING

Ideal for deep cycle batteries, SC320 delivered 3 stage charging, maximising battery life and performance. The built-in temperature sensor adjusts the output guaranteeing a thorough charge in all conditions.

• Maintains your battery ready for use
• Safe to leave permanently connected
• Prevents solar over-charging/discharge
• Support for optional remote connection (not included)

LOW VOLTAGE DISCONNECT (LVD)

LVD will disconnect the DC load before the battery voltage falls too low, preventing damage due to over-discharge. Once the battery is recharged, the DC load will be automatically reconnected.

LVD disconnect:

11.1V (12V)
22.2V (24V)

LVD reconnect:

12.6 (12V)
​25.2V (24V)

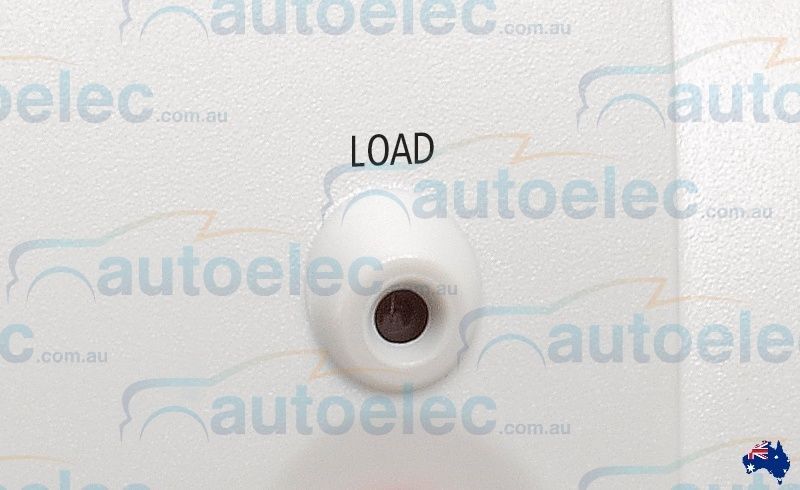

LOAD CONTROL

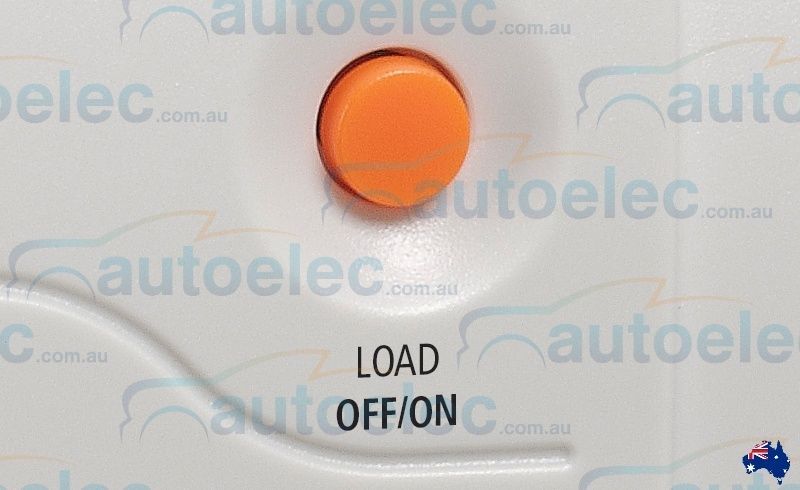

SC320 allows you to switch the DC load on/off from the controller without having to physically disconnect the load or appliance. When switched to 'off', the DC load is isolated from the battery ensuring maximum power conservation.

Max load: 20A

FEATURES

• Short circuit & over current protection
• Reverse polarity protection
• High voltage protection
• Conformal coated for protection against dust and moisture

, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, , , ,, ,, ,, ,

SPECIFICATIONS
	TYPE	Automatic
	INPUT	12V or 24V Solar Panel
	MAX INPUT	50V DC, 20A
	MAX LOAD	20A
	BATTERY	12V or 24V
	CHARGE CONTROL	3 stage charging
	MAX PANEL SIZE	240W

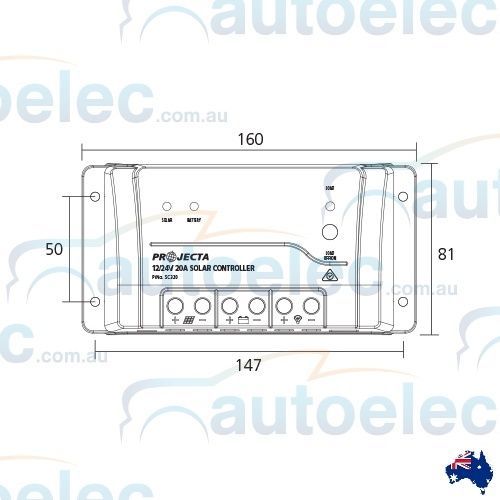

	SIZE (mm)	160 x 81 x 48
	APPROVALS	EMC

For more information, please see the user manual .
